Edic-mini Tiny16 A37

Specification

Height 51 mm
Width 27 mm
Thickness 7 mm
Weight 10 g
Case Metal
Record time (memory capacity in hours) 300h, 1200h
Battery life in record mode 40h
Power supply 12
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

Modifications:
A37-300h, A37-1200h (last digits in the models' names show the maximum recording time (sampling rate 8 kHz, 2 bit ADPCM) in hours).

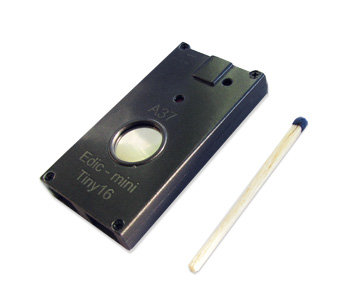

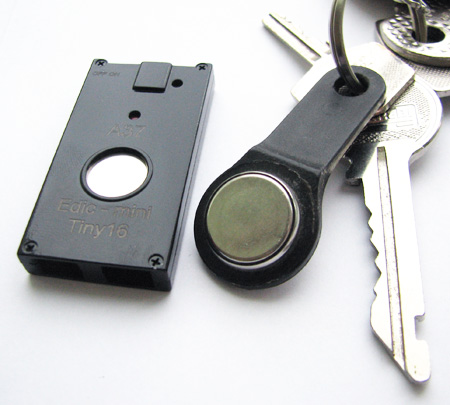

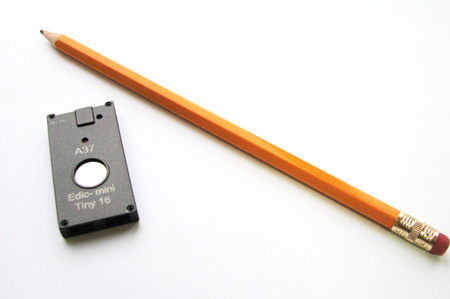

The new model is designed as a truly tiny metal device, which won't attract much attention due to its size and design. It consumes power from a 180 mA/h Li-Pol rechargeable battery. The recorder has a switch of membrane type to turn the power on/off. With the help of the USB cable, which is on the delivery set, you can upload the recordings from the recorder onto a computer. The recorder's case has a ring, which allows to use the recorder as a key trinket.

Main Advantages:

  •  High quality recording because of the 16 bit audio codec
  •  Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and one button control
  •  High sensitive microphone (perating distance is 10-12 m )
  •  Long recording duration (from 300 to 1,200 hours depending on memory capacity)
  •  Built-in AGC system
  •  Low consumption current
  •  Wide recorded frequency band: up to 100-10,000 Hz


Height 51 mm
Width 27 mm
Thickness 7 mm
Weight 10 g
Case Metal
Record time
(memory capacity in hours)
300h, 1200h
Battery life in record mode 40h
Power supply 12
Battery life in VAS mode
(acoustic signal below the threshold)
250h
Battery life in stand-by mode 8 months
Built-in flash memory 2 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -72 dB
Sample rate 5, 6.6, 8, 10, 13.3, 20
Voice Activating System YES
Timer recording YES

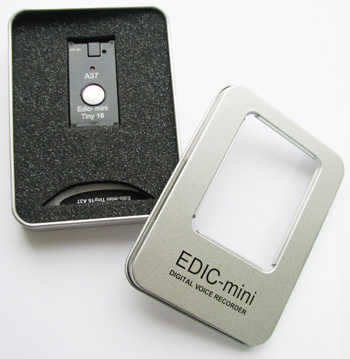

Delivery set:


Voice Recorder
USB cable
Software CD
Instructions


Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
