RAKSA iDet

Specification

Height 43 mm
Width 77 mm
Thickness 18 mm
Weight 35 g
Modifications In stock in Qty Buy
USA Russia
RAKSA iDet + Ready for
shipment
+
-

Select modifications

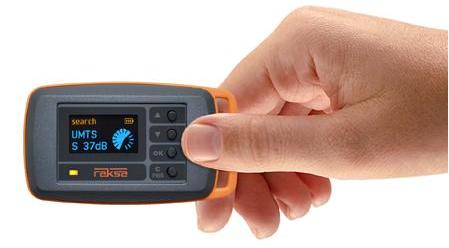

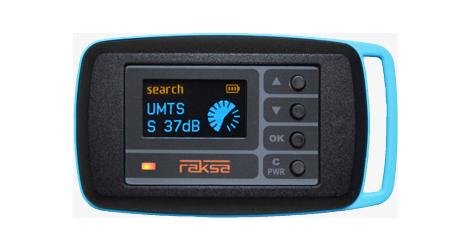

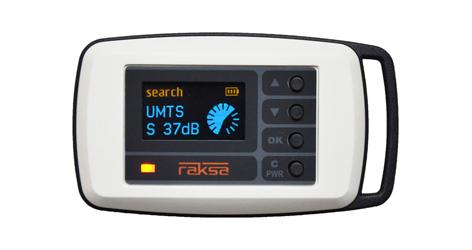

RAKSA iDet Selective RF Detector can be used to detect and locate in near field a wide variety of radio transmitters used for secret access to information.

RAKSA iDet detects:
Cellular phones of GSM 850/ 900E/ 1800/ 1900, UMTS 850/ 900/ 1800/ 1900/ 2100, CDMA 450 (A-H)/ 800/ 1900 standards
Cordless DECT phones
Bluetooth and Wi-Fi devices
Wireless video cameras
Radio transmitters with analog modulation (AM, FM, PM)
Radio transmitters with digital modulation and continuous carrier (FSK, PSK, etc.)
Radio transmitters with wideband modulation up to 10 MHz bandwidth


RAKSA iDet  is a superheterodyne receiver with low IF and frequency synthesizer. Scanning and analyzing cycle period is 1.0-1.5 sec. RAKSA iDet can operate within guard, sweep, search, difference search modes and monitoring of digital signals.


Competitive Advantages:

  •  Selective reception of radio signals

  •  High speed of scanning and analyzing

  •  Detection of wideband and digital signals

  •  Adaptation to the background noise in Guard Mode

  •  Difference search mode

  •  Audio monitoring

  •  Signal frequency and level measurement

  •  Alarm events log

  •  Soundless alarm indication (vibration mode)

  •  No need for external antenna

  •  Interface languages: English, German, Spanish, Italian, French, Russian


Technical Characteristics:

  Frequency band    40 - 3800 МHz
  Typical sensitivity    70 mV/m
  Dynamic range    50 dB
  Bandwidth    10 МHz
  Period of full scanning cycle    1.5 s
  Running time in guard mode    4 - 12 h
  Running time in other modes       3 h
  OLED display
  128 x 64
  Dimensions   77 х 43 х 18 mm
  Weight    35 g


Detection range of radio signal source is determined by its radiated power and sensitivity of the field indicator. In cell phones radiated power depends on the reception conditions, such as distance from the base station, location inside or outside the building, etc.  and can vary significantly. The typical values and limits of detection range of radio signal sources for the RAKSA iDet field indicator are as follows:
GSM cell phone: radiated power -20 - +30 dBm, detection range 0.3 - 80 m, typical value 10 - 20 m.
UMTS cell phone: radiated power -40 - +20 dBm, detection range 0.03 - 30 m, typical value 2 - 3 m.
DECT wireless phone: radiated power -20 dBm, detection range 8 m.
Wireless microphone for secret information retrieval : radiated power 0 - +10 dBm, detection range 3 - 10 m.

The limits of the transmitter power corresponding to the dynamic range of the RAKSA iDet field indicator are as follows:
at the distance of 1 m from the transmitter 0.15 mW - 15 W
at the distance of 3 m from the transmitter 1.4 mW - 140 W




Height 43 mm
Width 77 mm
Thickness 18 mm
Weight 35 g
Frequency band 50-3800 MHz
Dynamic range 50 dB

Delivery set:



RAKSA iDet Selective RF Detector
Charging Device
User Manual
