Edic-mini Dime B120w

Specification

Height 30mm
Width 24mm
Thickness 5mm
Weight 3g (5,5g with battery)
Case Wooden
Record time (memory capacity in hours) 19h
Battery life in record mode up to 80 h
Power supply Battery CR2016
Modifications In stock in Qty Buy
USA Russia
Edic-mini Dime B120w - Ready for
shipment
+
-

Select modifications

Edic-mini Dime B120w voice recorder is intended for making high quality record of voice messages into built-in flash memory.

The difference from the B120 is the case made of stabilized wood.

The feature of this model is an automatic start and stop recording when installing / removing the battery. Greater autonomy of work - the voice recorder can work up to 80 hours on a single battery. One of the additional advantages is the ability to connect a PC or a smartphone directly, without installing additional software. The voice recorder is simply defined as a removable disk with the recorded files and the settings file at the root. The quality of the recording is ensured by a modern digital microphone using MEMS technology, which allows you to record with a quality of 24bit 22kHz.

Distinctive features:

- Compact size: only 5 x 24 x 30mm;
- A variety of color solutions (black, green, wenge, orange-yellow, light beech);
- High intelligibility of recording, due to the sensitive MEMS digital microphone and low self-noise level;
- Maximum recording quality up to 24 bits and 22 kHz;
- Direct connection to a PC in the form of an external disk (USB flash drive);
- Connecting to a smartphone / tablet via an OTG cable;
- Automatic switching on (the recorder starts recording immediately after installing the battery);
- Low consumption currents (slightly more than 1 mA in recording mode);
- Voice Activation System ("VAS"). When properly configured, this mode significantly extends the autonomy of the voice recorder and saves memory, due to the fact that recording is automatically activated only when the voice recorder detects a sound louder than the specified threshold;
- Linear and circular recording. When the recorder's memory is full, the recorder will overwrite the old material with the new one;
- Password protection of access to the content of records;
- Configuration via a text configuration file, available in any text editor, even on a smartphone;
- LED status indication;
- Support Windows/Mac/Linux/Android/Apple and other operating systems that support connecting external devices. You can listen to recordings from the voice recorder under any operating system without installing special software.



Recorder’s memory fill depends on the selected recording mode:

RecordMode

Max time until memory is full (unless VAS or circular recording is enabled)

0 – PCM 22 kHz 24 bit

1 hour

1 – PCM 22 kHz 16 bit

1 hour 30 min

2 – PCM 16 kHz 24 bit

1 hour 30 min

3 – PCM 16 kHz 16 bit

2 hours 15 min

4 – PCM 8 kHz 24 bit

3 hours

5 – PCM 8 kHz 16 bit

4 hours 30 min

6 – uLaw 8 kHz 8 bit

9 hours

7 – ADPCM 8 kHz 4 bit

18 hours


Height 30mm
Width 24mm
Thickness 5mm
Weight 3g (5,5g with battery)
Case Wooden
Record time
(memory capacity in hours)
19h
Battery life in record mode up to 80 h
Power supply Battery CR2016
Built-in microphone sensetivity up to 15 m
Audiocodec 8 bit, 16 bit, 24 bit
Recording format WAV
Compression method uLaw
Frequency band 0,1-10 kHz
Dynamic range 90 dB
Sample rate 8, 16, 22
Indication of operation LED
Voice Activating System YES
Timer recording NO

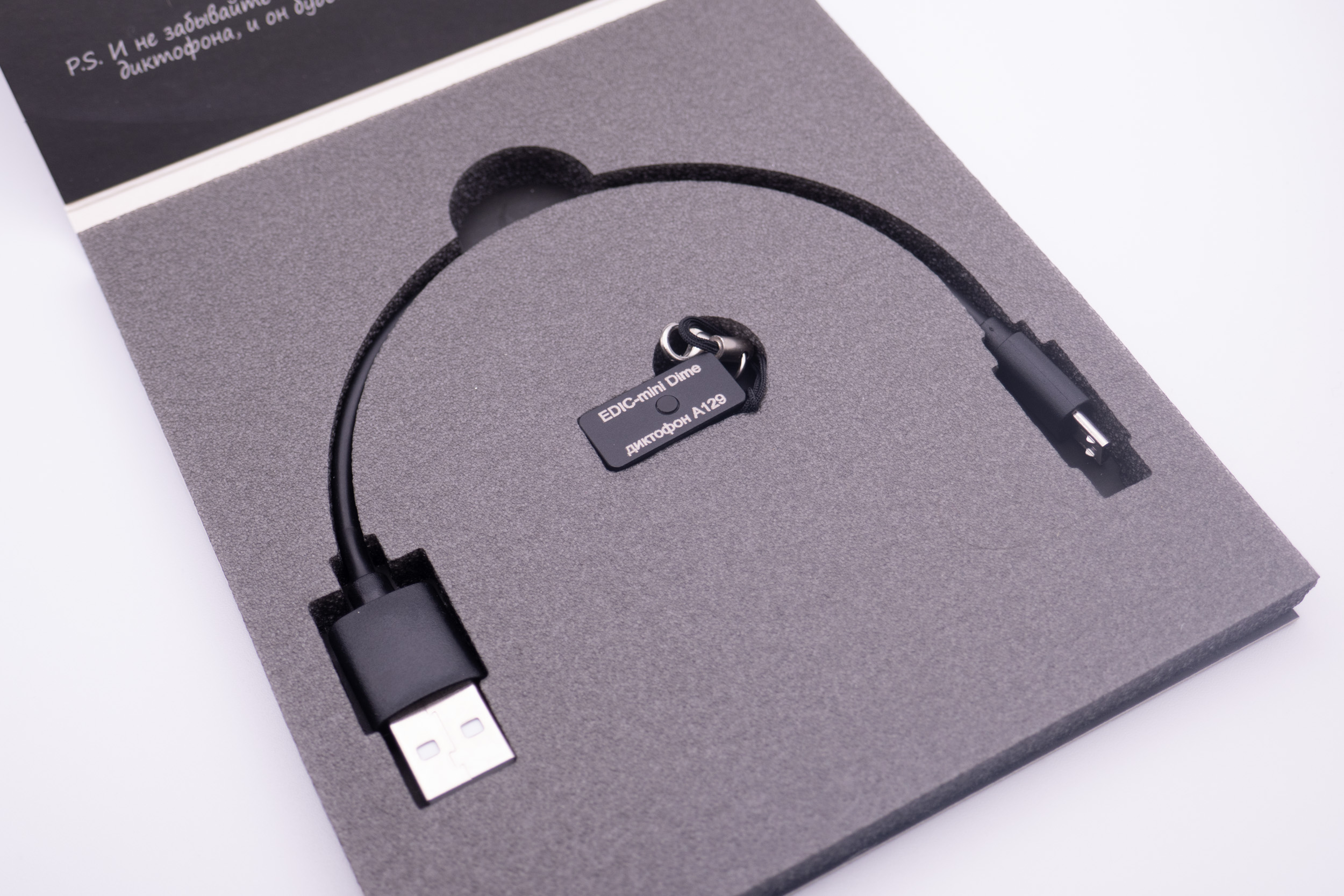

Delivery set:

1. Recorder

2. Interface cable

3. Battery CR2016

4. Operation manual

5. Package box

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com

Software Firmware Manual to
software
Series manual Supplement to the model
EM Dime short manual EM Dime full manual DimeRecInfo
