Edic-mini Tiny A45 - 1Gb

Specification

Height 79 mm
Diameter 9 mm
Weight 13 g
Case Metal
Record time (memory capacity in hours) 150h
Battery life in record mode up to 64 hours
Power supply rechargeable battery
Modifications In stock in Qty Buy
USA Russia
Edic-mini Tiny A45 - 1Gb - Ready for
shipment
+
-

Select modifications


Modification: A45-1Gb

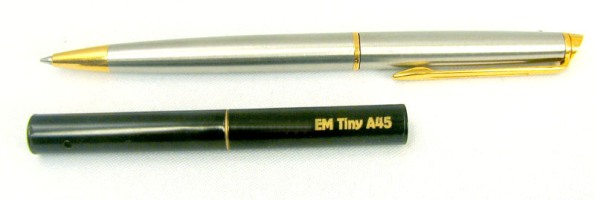

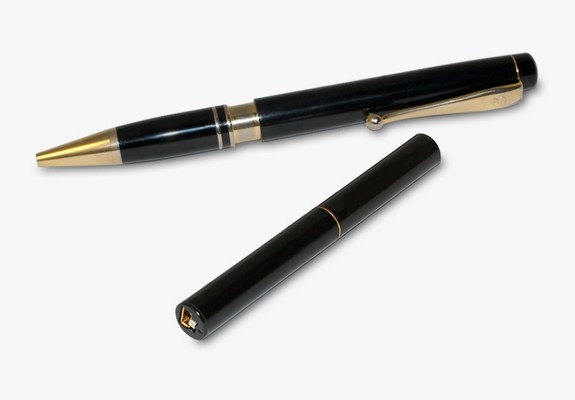

We present a miniature voice recorder A45, which is thinner, than a pen (only 9 mm in diameter).
The new recorder is produced in an aluminum cylindrical case and has simplified functionality - one control switch, operating modes are indicated with the LED.

This professional-level product has long battery life, recording time and fast and convenient transfer to computer (the recorded data is uploaded onto the PC with the help of USB cable, included into the package). Built-in highly sensitive microphone allows recording within wide frequency band.

A45 stores data in the built-in 1 Gb flash memory, which provides up to 150 hours of high-quality recording. The recorder's Li-Pol rechargeable battery provides autonomic work during 64 hours.


Distinctive features:

  •   Cylindrical case made of aluminium;
  •   Simplified interface (recording only);
  •   The option to use the recorder as a flah-drive;
  •   VAS system;
  •   Timer to turn the recorder on at the preset time

Technical Characteristics:

  •   Dimensions: diameter 9mm, length 79 mm ;
  •   Weight (battery not included): 14 g ;
  •   Operating temperature range: 0…+40 ?С
  •   Record time into the built-in memory: 150 h;
  •   Built-in microphone sensitivity: up to 9 m ;
  •   Signal-to-noise ratio: –64 dB;
  •   Record mode: Mono;
  •   Battery life in record mode (8 K Hz, without compression): up to 64 hours;
  •   Battery life in record mode with VAS (audio signals below threshold): up to 150 hours;
  •   Battery life in stand-by mode: up to 7 months;
  •   Rechargeable battery capacity Li-Pol, 150 mAh;

Height 79 mm
Diameter 9 mm
Weight 13 g
Case Metal
Record time
(memory capacity in hours)
150h
Battery life in record mode up to 64 hours
Power supply rechargeable battery
Battery life in VAS mode
(acoustic signal below the threshold)
up to 150h
Battery life in stand-by mode 7 months
Built-in microphone sensetivity up to 9 m
Built-in flash memory 1 Gb
Interface USB 1.1
Audiocodec 10 bit
Audio recording mode Mono
Recording format WAV
Compression method without compression, uLaw
Frequency band 100 Hz to 10 kHz
Dynamic range -64 dB
Sample rate 5.5, 8, 11, 16, 22
Controls switch
Indication of operation LED
Voice Activating System YES
Timer recording YES
Current consumption 150 mAh
Gift Y
Battery charging time about 3 hours

Delivery set:


Voice Recorder;
USB cable;
Software CD;
Instructions.

Distance 1m:
A45 1m.wav

Distance 3m:
A45 3m.wav

Distance 5m:
A45 5m.wav
