mAVR H.264 SB
Specification
Height | 40 mm |
Width | 54 mm |
Thickness | 29 mm |
Weight | 36 g |
Case | Plastic |
Record time (memory capacity in hours) | 2h on 1Gb |
Battery life in record mode | 8h |
Power supply | 12 |
Modifications | In stock in | Qty | Buy | |
USA | Russia |
Select modifications
No longer manufactured!

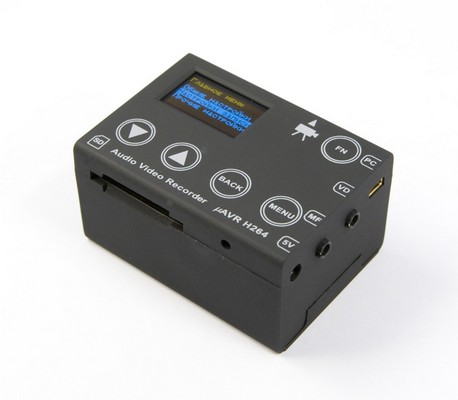

Looking for value in Video Surveillance? Choose mAVR H.264SВ!
This audio/video recorder was designed on the customers’ request. mAVR’s effectiveness achieved its full potential – with its advanced capabilities the recorder has been appreciated by experts.
The audio/video recorder mAVR H.264SВ is intended for professional high quality audio and video recording. The model records onto SD/SDHC memory card with capacity up to 32 GB, with subsequent decoding (converting) and possibility of playing back the recording on a computer.
The new mAVR H.264SВ will meet your needs as it is designed for maximum efficiency and reliability in security applications.
Having intelligent video capabilities and superior image quality, MAVR can be located anywhere to provide discreet video surveillance with outstanding H.264 performance.
What’s new:
• Enhanced rechargeable battery with 2000 mA/h capacity.
• Longer recording duration (up to 8 hours)

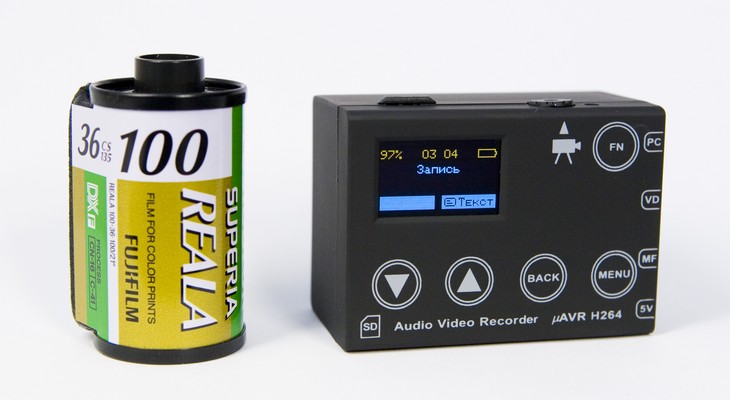

• Dimensions: 54х40х29 mm
• Weight: 36g.
The other characteristics stayed the same:
- Convenient disposition of the video-sensor.
- Smooth by touch “tactile” coating the recorder’s case.
- Refined slot for rechargeable batteries.
- New function – Noise-Suppressor, destined for adjusting the noise-suppressing system of the built-in video camera.
- Flickering elimination.
Technical Characteristics:
- Dimesions: 54х40х29 mm;
- Weight: 36g;
- High quality recording with low power consumption;
- Record time in best quality - 2h on 1Gb, in low quality - 23h on 1Gb;
- Frequency band: 80 – 20,000 Hz
- Dynamic range: 68 dB (video) and 92 dB (audio).
- Touch-sensitive control with keyboard lockout capability
- Recording can be either from the built-in video camera or from an external source - TV, camera, player, and etc.
- Audio recording can be with automatic or manual amplification, mono or stereo, from the built-in microphone or external sources
- Automatic correction of white balance, flickering elimination, filtration - reduction of images' small defects (smoothing).
- Timer recording at a certain time - the recorder has 10 independent timers. Setting parameters: date and time, weekday, and recording duration.
- For black-box mode the following recording types are provided: linear and two kinds of loop recording.
- Distance control of audio and video recording by means of Video Input cable with the remote control (provided on the delivery set).
- Opportunity to choose supply voltage from external camera when energized from mAVR (5 V or 12 V).
- The built-in voltage transducer allows the recorder to supply the external camera with power.

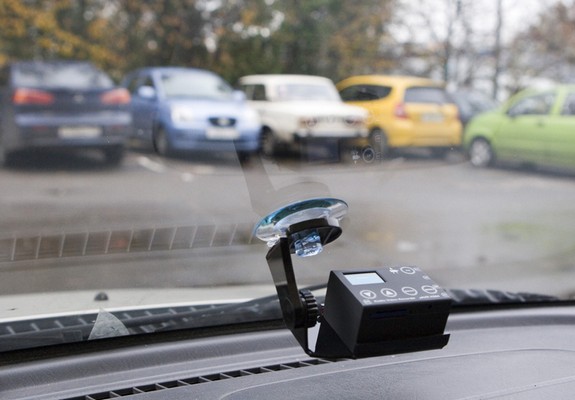

- When connected to the cigarette lighter, mAVR can simultaneously record and charge the rechargeable battery.
- Built-in calendar and clock.
Technical characteristics |
||
Dimensions |
|
54x40x29 mm |
Weight |
|
36g |
Video |
Compression of video signal: |
AVC (H.264) |
|
Bit rate of video signal: |
up to 1024 kb/sec |
|
Frame rate of recorded video input |
up to 30 fps |
Videoinput |
Supported formats |
NTSC, PAL, SECAM |
|
Maximum resolution |
720 x 480 in NTSC, 720x576 in PAL, SECAM |
Built-in videosensor |
Dynamic range |
68 dB. |
Camera resolution |
640х480 |
|
|
Focal distance |
2.4 mm |
|
Image angle |
64 degrees |
Audio |
Sound/noise ratio |
50 dB |
|
Dynamic range |
92 dB |
|
Compression of audio signal |
AAC |
|
Frequency range |
80-20,000 Hz |
|
Capacity |
16 bit |
Additional |
SD memory card capacity |
up to 2 GB |
|
SDHC memory card capacity |
32 GB |
|
Rechargeable battery |
Li-Ion |
|
Built-in camera record duration with fully-charged rechargeable battery |
8 hours |
|
Battery life in stand-by mode |
up to 12 months |
|
Rechargeable battery charging time |
about 7 hours |
|
Operating temperature range |
0…+40? C (32…+104?F) |
Height | 40 mm |
Width | 54 mm |
Thickness | 29 mm |
Weight | 36 g |
Case | Plastic |
Record time (memory capacity in hours) |
2h on 1Gb |
Battery life in record mode | 8h |
Power supply | 12 |
Battery life in stand-by mode | 12 months |
Compact flash card capacity | SD-card - up to 2 Gb; SDHC-card - from 4 to 32 Gb |
Audio recording mode | Mono |
Frequency band | 80-20000 Hz |
Dynamic range | - 68 dB (video) and - 92 dB (audio) |
Motion detector | YES |
Timer recording | YES |

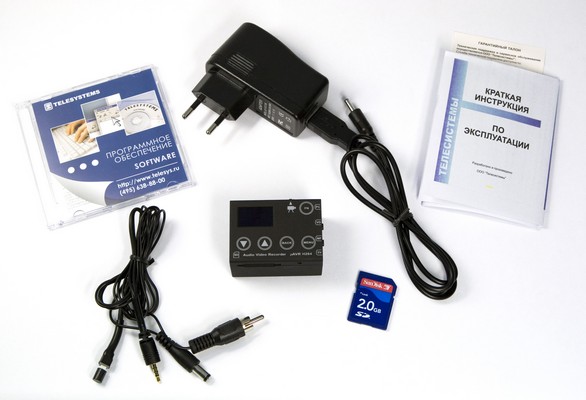

Delivery set:
a:2:{s:4:"TEXT";s:665:"Audio/video recorder;
Video Input cable with the remote control;
Power adapter;
Rechargeable battery Li- lon;
SD-card with capacity of 2 GB;
Software CD and instructions;
";s:4:"TYPE";s:4:"html";}
Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
Software | Firmware | Manual to software |
Series manual | Supplement to the model |
New RecManager. Version 1.16. February, 2010 K-Lite Codec Pack. Version 520. December, 2009 | New Updater. Version 1.18. February, 2010. | Instruction for better recording quality. December, 2009 | Series Manual. October, 2009 Series catalogue file | mAVR H.264 SB Supplement. Version October, 2009 Catalogue file |
