Edic-mini Pro B42

Specification

Height 94 mm
Width 13 mm
Thickness 13 mm
Weight 16 g
Case Metal
Record time (memory capacity in hours) 300h, 1200h
Battery life in record mode 108h
Power supply 13
Modifications In stock in Qty Buy
USA Russia
Edic-mini Pro B42-300h - Ready for
shipment
+
-

Select modifications

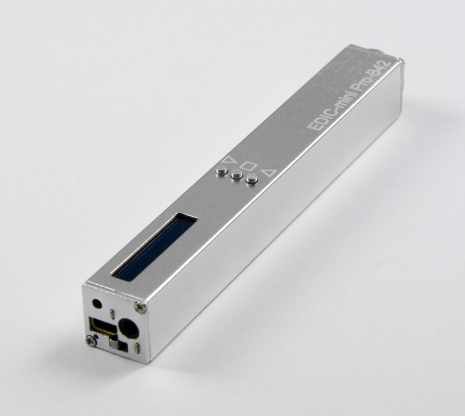

Extending the new Pro series, our company offers a new professional recorder – this is Edic-mini Pro B42. This model is distinguished by its peculiar design as well as by OLED display and control buttons on the recorder's case. That is what makes the control process very easy and informative! The option to play the records from the device itself with the help of mono earphone (included into the package) is preserved.

Modifications: B42-300h (last digits in the models' names specify the maximum recording duration in hours - sample rate 8 kHz, and 2 bit ADPCM) .

The new originally shaped model is produced in metallic case available in five colors. The device gets power supply from a standard battery or AAA rechargeable battery. OLED display offering high contrast ratio as well as control buttons on the case of the device considerably simplify the recorder's setting and provide easy menu navigation. The records can be played both from the device itself and with the help of earphone included into the package.


Distinctive features:

  •   Solid light metallic case;
  •   OLED-indicator offering high contrast ratio and wide viewing angle;
  •   3 control buttons, enabling to change the recorder's parameters without connecting it to the PC;
  •   Built-in high-speed interface USB 2.0, offering exchange speed up to 5, 5 Mb/s;
  •   Power supply: standard battery or AAA rechargeable battery;
  •   The option to play the records from the device at once with the help of mono earphone;
  •   Software goes directly with the device, to start applying it, connect the device to the USB connector of the PC;
  •   Time mark - option, enabling to play and transfer data onto the PC specifying starting and ending points.


Technical characteristics:

  •   Metal case;
  •   Dimensions: 94 x 13 x 13 mm;
  •   Weight (battery not included): 16g;
  •   Recording duration: from 300 to 1200 hours depending on the memory capacity;
  •   Two-line OLED indicator offering high contrast ratio 104x16 pxl;
  •   Recording mode: mono ;
  •   Sensitivity of built-in microphone: 7- 9 m ;
  •   Power supply: standard battery or AAA rechargeable battery ;
  •   Operating temperature range: 0...+40?C (32...+ 104 F);
  •   Maximum frequency band when playing from the PC: 100...6000 Hz; when playing with the earphone: 100...3800Hz;
  •   Sample rate: 16000, 8000, 4000 Hz;
  •   Codec capacity: 16 bits;
  •   Signal-to-noise ratio: -72 dB;
  •   VAS system;
  •   8 user's settings of the recording parameters (profiles);
  •   Option of random clearing the records;
  •   Built-in real time clock;
  •   Battery status indication;
  •   Battery life in record mode (sampling rate 8 K Hz, without compression): up to 4,5 days;
  •   Battery life in stand-by mode: up to 1 year;
  •   Battery life in record mode with VAS (sampling rate 8 K Hz, without compression) at audio signals below threshold: up to 1,5 week;
  •   Password protection.


Height 94 mm
Width 13 mm
Thickness 13 mm
Weight 16 g
Case Metal
Record time
(memory capacity in hours)
300h, 1200h
Battery life in record mode 108h
Power supply 13
Battery life in VAS mode
(acoustic signal below the threshold)
240h
Battery life in stand-by mode 12 months
Built-in flash memory 2 Gb, 8 Gb
Interface USB 2.0
Audio recording mode Mono
Frequency band 100 - 6000 Hz
Dynamic range -72 dB
Sample rate 4, 8, 16
Voice Activating System YES
Timer recording YES

Delivery set:


Voice Recorder
Headphones
USB cable to connect the device to the PC
2 AAA batteries
Instructions


Distance 1m:
B42 1m.wav

Distance 3m:
B42 3m.wav

Distance 5m:
B42 5m.wav

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
