Edic-mini Tiny B30

Specification

Thickness 10 mm
Diameter 26.5 mm
Weight 7 g
Case Metal
Record time (memory capacity in hours) 300h
Battery life in record mode 70h
Power supply 13
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

Modifications:
B30-300h (last digits in the models' names show the maximum recording duration in hours - sampling rate 8 kHz, 2 bit ADPCM).

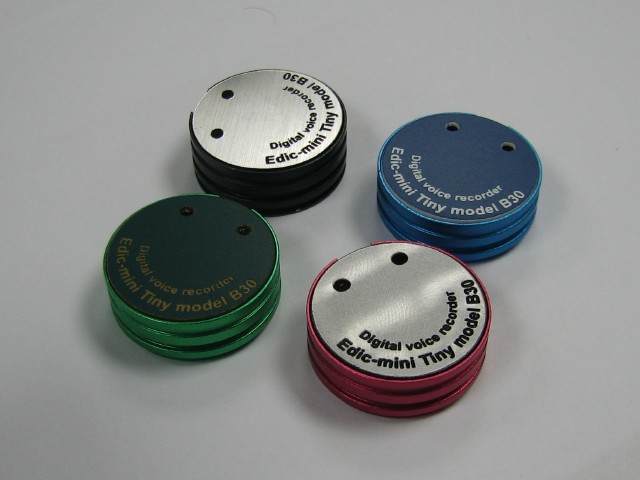

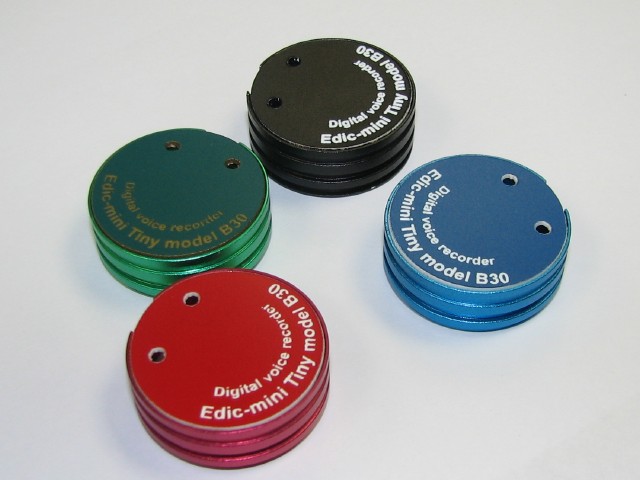

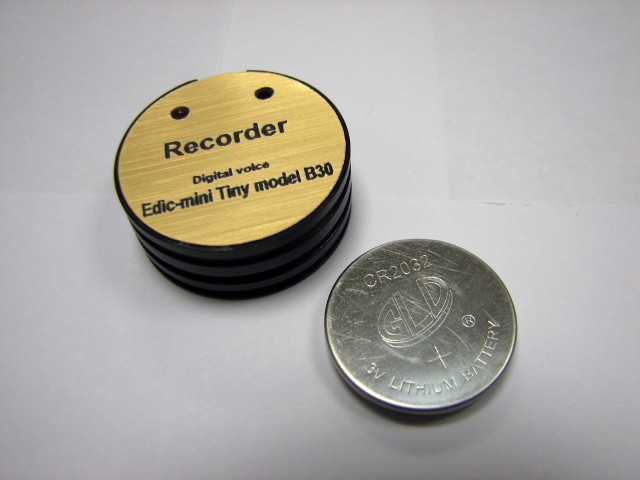

The B30 model could be called the recorder of a good mood because of its interesting design and six possible case colors. The small case reminds a smiley and is just 26.5 mm in diameter with thickness - 10 mm. The recorder's functionality is analogous to the functionalities of all the other recorders in Edic-mini Tiny series. This model provides recording of high quality and has a CR 2032 battery. Battery life is up to 70 hours (8 k Hz, without compression). The recorder has an option for connection to an external microphone.

B30 features record time from 300 to 1200 hours, depending on built-in memory volume and selected quality settings. It stores data in  the built-in flash memory with the size from 1 Gb to 8 Gb (depending on the modification).

The recorder can be connected to PC via USB port with the supplied cable.

The supplied software makes it possible:


    * to save the recorded messages as standard sound files;
    * to set the recorder parameters;
    * to use the recorder as a flash-disc of 1-8 GB, as well as to store and transfer files;
    * there is an opportunity to update the recorder firmware using the software.

Our product differs from other gadgets that are available on the market by:

  •  High quality recording;
  •  Low power consumption;
  •  Built-in USB interface (exchange speed up to 0.7 Mb/sec);
  •  High sensitivity microphone;
  •  Wide frequency band;
  •  Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and a one control button, the recorder's LED indicates recorder's operating modes;
  •  Long recording duration (from 300 to 1200 hours depending on memory capacity);
  •  Password protection (to secure the data, a password may be set in the DVR, which prevents another user from unauthorized access to the DVR content and settings);
  •  Voice Activation System (which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made.);
  •  Timer to turn recording on;
  •  Digital signature of recordings.

";s:4:"TYPE";s:4:"html";}
Thickness 10 mm
Diameter 26.5 mm
Weight 7 g
Case Metal
Record time
(memory capacity in hours)
300h
Battery life in record mode 70h
Power supply 13
Battery life in VAS mode
(acoustic signal below the threshold)
190h
Battery life in stand-by mode 8.5 months
Built-in flash memory 2 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -64
Sample rate 5, 8, 11, 16, 22
Voice Activating System YES
Timer recording YES
Current consumption from 7.3 mA up to 17.6 mA
Gift Y

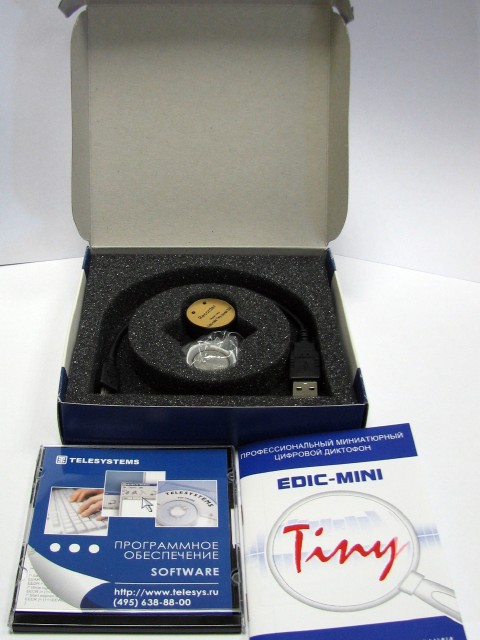

Delivery set:


Voice Recorder
Battery (CR2032) – 2 pieces
USB cable
Software CD
Instructions

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
