Edic-mini Tiny S E60

Specification

Height 45 mm
Width 31 mm
Thickness 10 mm
Weight 20 g
Case Plastic
Record time (memory capacity in hours) 300h, 1200h
Power supply 142
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

Modifications: Edic-mini Tiny E60-300h, Edic-mini Tiny E60-1200h (the last digit in the model's name specifies the maximum recording duration in hours).

Please note: modification 600h can be made only to order.

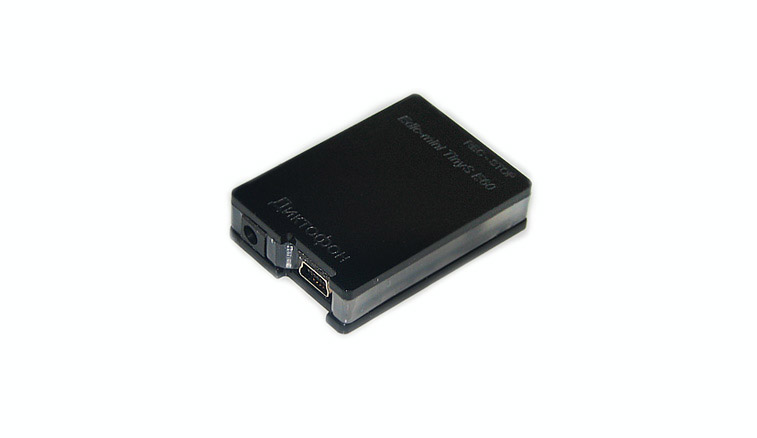

New modifications! This model has been modernized and now has a case, which significally widens the application sphere of the device. You are free to choose if you wish to use the model as an audio recorder or as a audio recording module without a case - if needed, simply extract the module from the case and mount it wherever needed.

All modules are based on hardware of audio recorders Edic-mini Tiny series. They are intended for recording high quality mono audio signal from the one or two external microphones on the built-in flash memory. Recording time depends on the memory capacity. The module was designed in such a way that it can be implemented into various devices for them to function as voice recorders.

The model uses external power source but has very low power consumption that provides very long battery life for any autonomous power source. The delivery set contains a cable for connecting an external power source.

The module has built-in USB controller and is connected to PC via USB cable.

Hardware and software parameters of the module are absolutely the same as for Edic-mini Tiny audio recorders.

Audio records are saved in WAV format. Supplied software provides the possibility to change the recording settings and use the module as a flash drive.

The module itself without a case has miniature size and can be mounted to various kinds of devices according to the needs og the customers.

The dimensions of the circuit board with USB slot is 12.9 mm x 26.84 mm.

Technical parameters:

  •   One or two audio sources can be connected;
  •   Recording from external audio source;
  •   Sample rates: 5,5, 8, 11, 16, 22 kHz ;
  •   Dynamic range : - 64 dB ;
  •   Audio recording format: Mono;
  •   Simple control by the only switch;
  •   Mode indication via built-in or external LED;
  •   Software correction of nonlinear distortions, caused by loud sound;
  •   Delayed start: one-time and repeated;
  •   PC interface: support of USB 1.1 or USB 2.0;
  •   Data transfer rate between recorder and PC via USB connection – up to 5.5 Mb/s;

Attention! Please contact us before placing orders for these products.


";s:4:"TYPE";s:4:"html";}
Height 45 mm
Width 31 mm
Thickness 10 mm
Weight 20 g
Case Plastic
Record time
(memory capacity in hours)
300h, 1200h
Power supply 142
Built-in flash memory 2 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 — 10000 Hz
Dynamic range -64 dB
Sample rate 5.5, 8, 11, 16, 22
Voice Activating System YES
Timer recording YES
Current consumption up to 2 mA (in record mode), 350 mA (in VAS mode)

Delivery set:


Module
USB cable
Cable for connecting an external power source

Instructions

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
