PORTABLE UAV DETECTOR «ALISSUM-8»

The Alissum-8 UAV detector allows you to detect a digital or analog video broadcast radio signal from UAVs in the range from 300-8000 MHz at ranges of at least 1 km in line of sight.

The detector classifies the detected signals - FPV, Digital, Wi-Fi, classification accuracy >98%. Signal detection and classification are implemented using artificial intelligence technologies, which makes it possible to isolate signals of only the necessary types of UAVs, to work in the presence of Wi-Fi signals and signals from various communication systems.

Features:

Frequency range: 300 … 8000 MHz;

UAV detection distance: over 1000 meters;

Built-in antennas;

High-quality drone signal selection based on neural network algorithms;

Detection of all major types of UAVs;

Ergonomical compact form factor;

Signal visualization: Frequency, Spectrum, and Echo with indication of signal types;

A dust- and moisture-resistant, impact-resistant body;

Memorizing a radio message: 30 seconds;

Scan log: at least 5 hours;

Filtering of pulse interference and narrowband signals;

Interference masking;

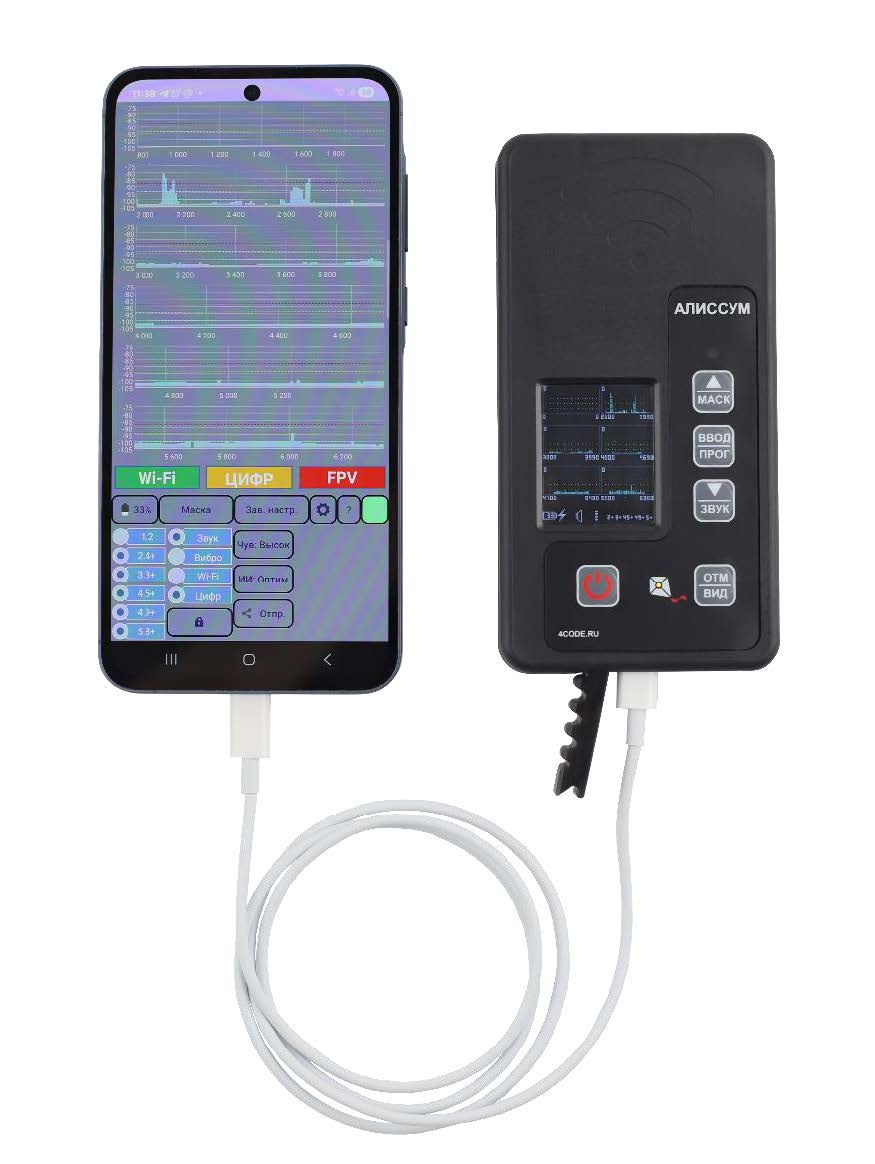

The ability to work with an external mobile device Android OS, Aurora OS, Linux PC OS;

Detailed Specifications:

Scan time for all frequency bands with signal classification: 3–5 seconds;

Signal type detection accuracy (FPV, DJI, Autel, Wi-Fi, etc.) exceeds 95%;

Duration of radio environment records: 30 seconds;

Scan history duration: > 40 h;

Sensitivity adjustment: 3 levels;

Mobile app (Android, Linux);

Battery life on a full charge:

- Continuous mode: over 12 hours,

- Economy mode: 20-40 hours;

Alarm and indication:

- color LED, 128*160 color screen, sound on built-in speaker and external headphones, vibration

- three modes of frequency indication, spectrum, echo

- audible alarm by types of UAVs: Wi-Fi, digital UAVs, FPV

- an app on a smartphone;

3.5mm Audio Jack Analog Headphones (not included);

Power supply: Built-in 3.7V 4000 mAh battery;

USB Type-C Charger (not included).
