MOBILE UAV DETECTOR ALISSUM-MK

The «Alissum-MK» mobile UAV detector is designed to be installed on vehicles in order to organize their protection, as well as objects in their controlled area from air attacks, including by controlling the activation of on-board electronic warfare systems.

The product provides detection of UAV radio signals in the operating frequency range from 300 to 8000 MHz at a distance of at least 1000 m of line of sight and control over the activation of external electronic warfare devices.

Detailed Specifications:

The built-in omnidirectional antennas

Classification of the type of detected signal based on neural network algorithms (Wi-Fi, digital UAV, analog FPV)

Signal type detection accuracy (FPV, DJI, Autel, Wi-Fi, etc.) exceeds 95%

Disabling Wi-Fi and digital UAV detection

Filtering of impulse noise and narrowband signals

Interference masking

Separate audio and visual alarm system on the control panel for three signal types: Wi-Fi, digital UAVs, FPV

Means of control and parameter configuration: buttons and smartphone app

Scan history duration: > 40 h

Management of external electronic warfare device activation, featuring two channels, a dry contact interface with galvanic decoupling (30 V, 2 A)

Overload protection when operating in close proximity EW systems

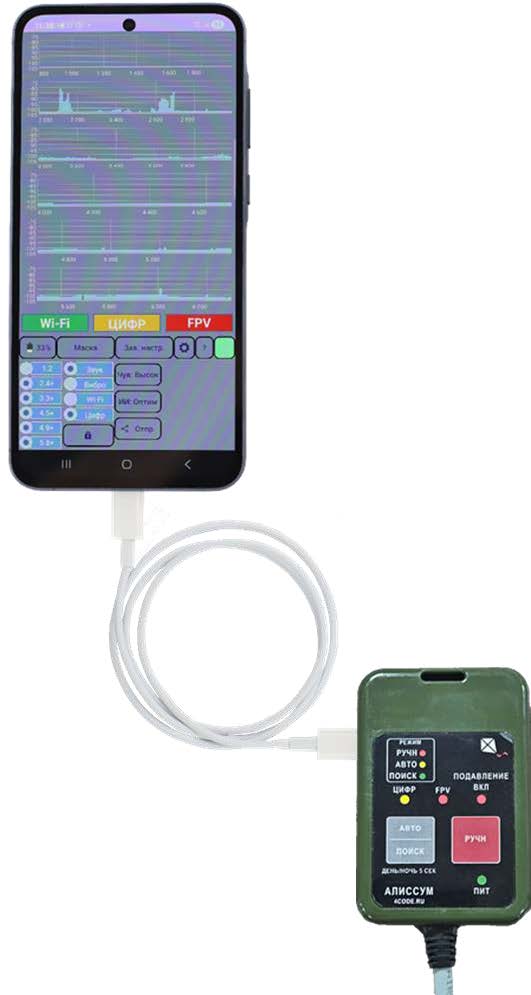

Mobile application for Android and Linux platforms

Settings storage in non-volatile memory

Power: external source, voltage 18–36 V, 200mA

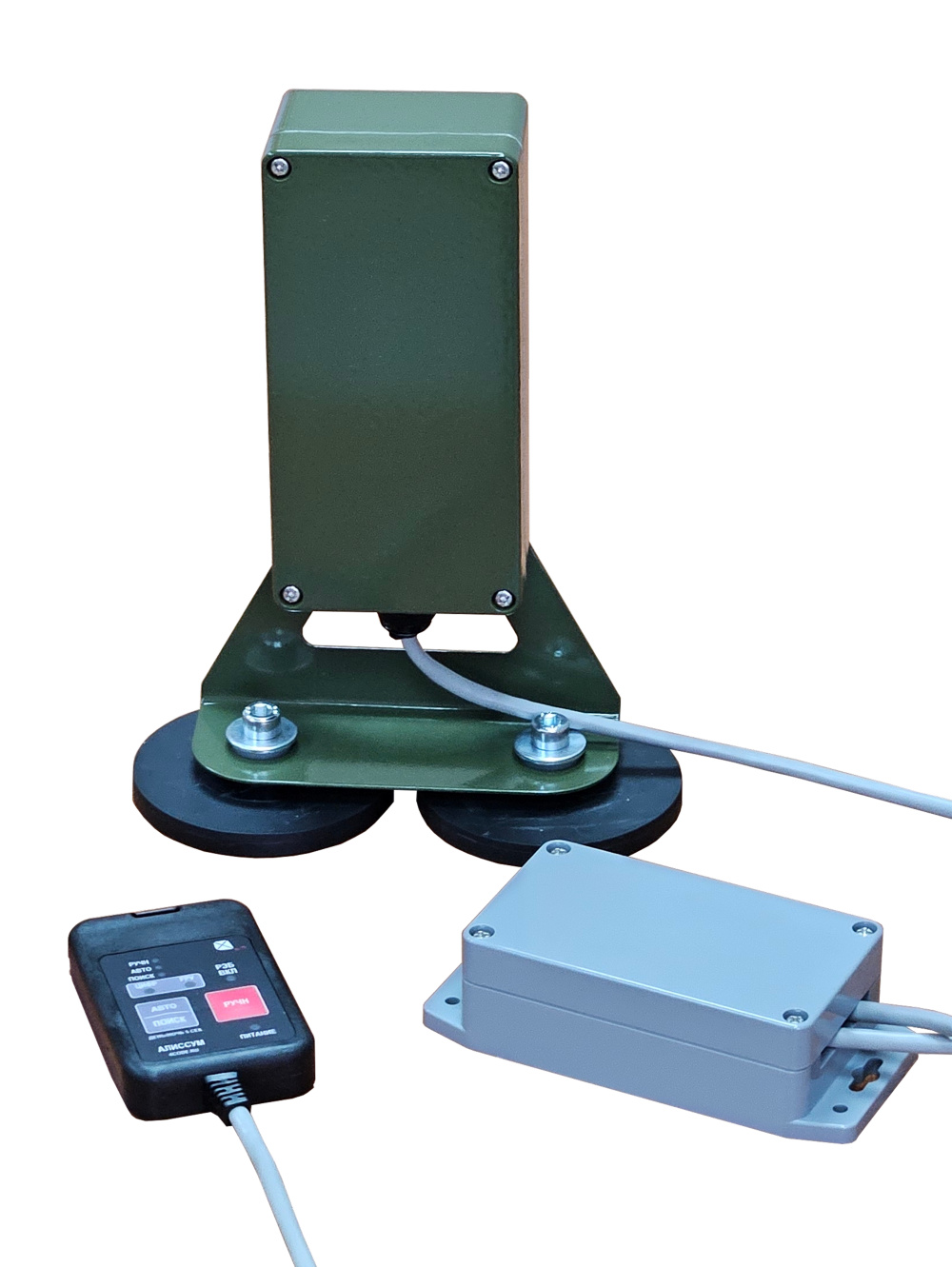

Detection unit: 240 ×180 ×90 mm

Magnetic mounting, dust and moisture protection: IP67

Control panel: 90 ×60 ×20 mm

Switching unit: 145 ×65 ×40 mm
