Edic-mini 3D-recorder

Specification

Height 98 mm
Width 98 mm
Thickness 20 mm
Weight 66 g
Case Plastic
Battery life in record mode up to 150 h
Power supply Rechargeable battery
Modifications In stock in Qty Buy
USA Russia
Edic-mini 3D-recorder - Ready for
shipment
+
-

Select modifications

Edic-mini 3D-recorder is a professional stationary stereo recorder.
The Recorder has three microphones and two memory card slots!
The use of digital microphones with a built-in 24-bit audio codec ensures maximum recording quality in the most difficult conditions, as well as high acoustic sensitivity (up to 18 m) and a wide dynamic range (24-bit). The presence of markers allows it to confirm the authenticity of the record in court. Recording is carried out onto a microSD card up to 256GB, which provides up to 1 year of continuous recording.

Main advantages:

1. Stereo recording, 3 microphones

2. 3D record mode. The track of the 3rd microphone is mixed into the first two

3. Voice Activation System (VAS)

4. Timers to start recording at the preset time (4 pcs) (once and daily)

5. Linear and circular recording

6. Digital markers to check record authenticity and prevent unauthorized modification of files; Calendar, time and date attachment

7. Encryption of the records made

8. Control and indication: buttons and LED

9. Playing back the recordings using headphones

10. Full functionality while charging

11. 2 slots for memory cards, SD format

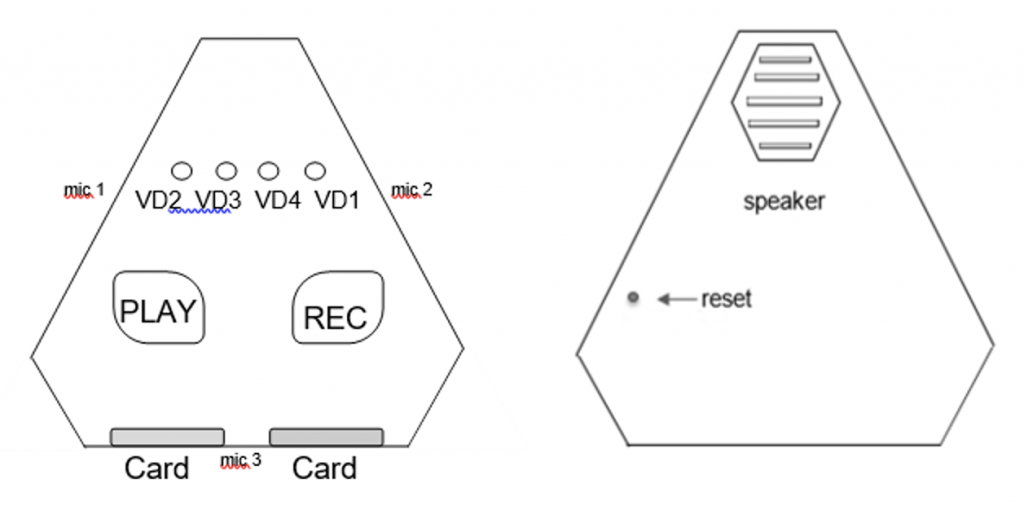

Снимок экрана 2021-09-02 в 12.50.29.png

Height 98 mm
Width 98 mm
Thickness 20 mm
Weight 66 g
Case Plastic
Battery life in record mode up to 150 h
Power supply Rechargeable battery
Built-in microphone sensetivity up to 18 m
Compact flash card capacity 4GB 2pcs
Audio recording mode Stereo
Recording format WAV
Frequency band 0,6-15 kHz
Dynamic range 65 dB
Sample rate 8, 16, 32
Controls button
Indication of operation LED
Voice Activating System YES
Timer recording YES
Battery charging time 3-4 hours

Delivery set:

1. Recorder;

2. SD card;

3. Headphones with 3.5 mm jack

4. Charging cable;

5. Short operating instructions with a warranty card

6. Package box

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com

Software Firmware Manual to
software
Series manual Supplement to the model
EM 3D Recorder short manual
