Edic-mini Tiny A21

Specification

Height 11 mm
Diameter 55 mm
Weight 21 g
Case Leather
Record time (memory capacity in hours) 300h, 600h, 1200h
Battery life in record mode 120h
Power supply 12
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

Modifications:
A21-300h, A21-600h, A21-1200h (last digits in the models' names show the maximum recording duration (sampling rate 8 kHz, 2 bit ADPCM) in hours).

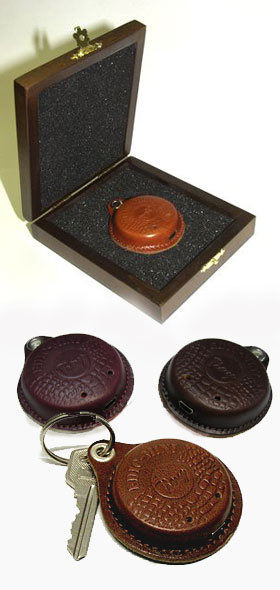

This model of the Edic-mini Tiny series differs from other models in its being round, having a leather case and the ability to be charged from USB port. These features certainly give it a perfect disguise of a simple trinket. But really it's not.

The DVR can be connected to PC via USB port with the supplied cable.

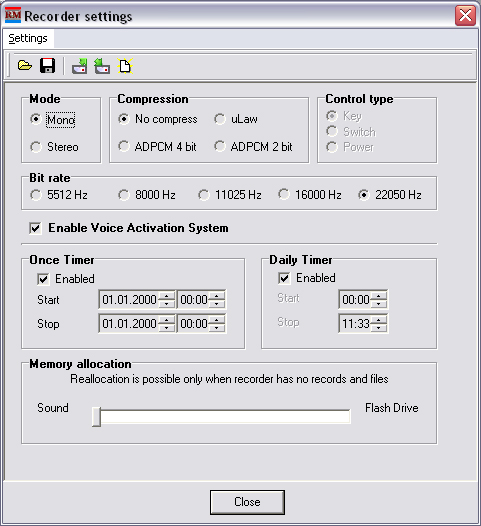

The supplied software makes it possible:

  •  To save the recorded messages as standard sound files.
  •  To set the DVR parameters.
  •  To use the DVR as a flash-disc of 2 Gb - 8 Gb, depending on the modification, as well as to store and transfer files.
  •  There is an opportunity to upd ate the DVR firmware using the software.
  •  The DVR has a Voice Activating System (VAS) which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made.
  •  The DVR working modes are indicated with the LED indicator.
  •  The DVR's Li-Pol battery can be charged right from USB port.
  •  The DVR can act as a flash-disc, which enables storing and transferring any data on it.
  •  The DVR can be used simultaneously for both recording messages and as a flash-disc, with the distribution of memory space for message recording and flash-disc being set by the user.
  •  The DVR makes it possible to record by both daily timer (time of recording start and stop is set) and once timer (date and time of recording start and stop is set).
  •  To secure the data, a password may be set in the DVR, which prevents another user from unauthorized access to the DVR content and se ttings.
  •  Every record made with the DVR is marked with the recording start time and date, and has a digital signature to define the DVR, which was used to make the record, and possible modification of the record file.
  •  The DVR software provides a multilingual support


Height 11 mm
Diameter 55 mm
Weight 21 g
Case Leather
Record time
(memory capacity in hours)
300h, 600h, 1200h
Battery life in record mode 120h
Power supply 12
Battery life in VAS mode
(acoustic signal below the threshold)
400h
Battery life in stand-by mode 12 months
Built-in flash memory 2 Gb, 4 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -64
Sample rate 5.5, 8, 11, 16, 22
Voice Activating System YES
Timer recording YES
Current consumption 2 mA in recording mode at 3V voltage
Gift Y

Delivery set:


Voice recorder
USB cable
Software CD
Instructions

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
