Edic-mini Tiny A27

Modifications: A27-37h, A27-75h, A27-150h (last digits in the models' names show the maximum recording duration (sampling rate 8 kHz, 2 bit ADPCM) in hours).

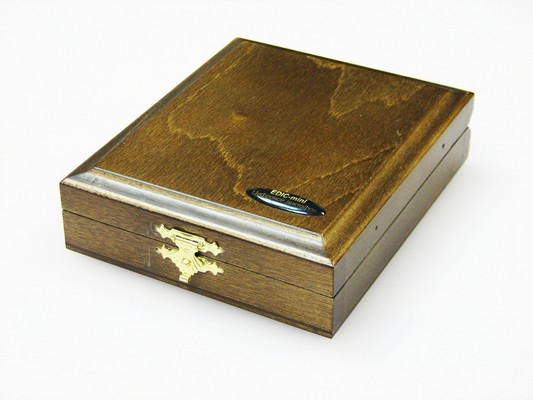

This Wooden Jewelry Box A27 is a tiny digital voice recorder, which is hidden inside an innocent wooden box that records professional recording voice messages for up to 75 hours per charge!

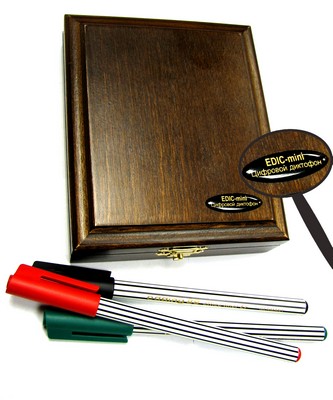

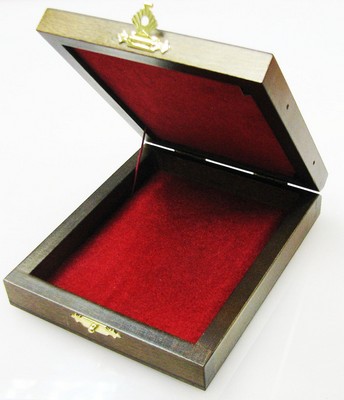

This little box can hold business cards, paper clips and such, and no one will know you are recording crystal clear audio. The tiny audio recorder is super small and can record from 37 to 150 hours of audio recording.

A27 audio recorder uses very low power, has a wide frequency range (100- 10000Hz), a wide dynamic range, and a highly sensitive built-in microphone.

A built-in real time clock and a calendar are provided, as well as the mode of start-up by timer. Due to the absence of moving parts, the audio recorder functions in a wide range of temperatures, including vibration, and dusty conditions.

This mini voice recorder is very covert; it's small and easy to hide.

A27 can be connected to PC via a USB port with the supplied cable. With the supplied software, working under Windows 2000/XP OS.


Technical Characteristics:

•    Voice Activating System (VAS) which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made.

•    Working modes are indicated with the LED indicator.

•    Li-Pol battery can be charged right from USB port.

•    The recorder can act as a flash-disc, which enables storing and transferring any data on it.

•    The recorder can be used simultaneously for both recording messages and as a flash-disc, with the distribution of memory space for message recording and flash-disc being set by the user.

•    A27 makes it possible to record by both daily timer (time of recording start and stop is set) and once timer (date and time of recording start and stop is set).

•    To secure the data, a password may be set in the recorder, which prevents another user from unauthorized access to the recorder’s content and settings.

•    Every record made with the recorder is marked with the recording start time and date, and has a digital signature to define the recorder, which was used to make the record, and possible modification of the record file.



Specifications:

•    Case: Wooden;
•    Dimensions: 130x110x35 mm;
•    Weight: 200 g;
•    Recording storage: up to 150 hours;
•    Low consumption current;
•    Power supply: rechargeable  battery  with 3000 mA/hr capacity;
•    Battery  life  in  record mode  (sampling  rate 8  KHz,  without  compression):  2  months (1500 hours);
•    Battery life in record mode with VAS (audio signal  below  threshold):  up  to  6  months (4000 hours);
•    Battery life in stand-by mode: up to three years up to 3 years (36 months);
•    USB 1.1 Interface - up to 12 Mbit/s (USB 1.1);
•    Signal/noise ratio: -64 dB;
•    Recording formats: Mono;
•    Compression algorithms: Without compression, u-Law (2/1), ADPCM (2 and 4 bit)
•    Sample rate: 5.5, 8, 11, 16 or 22 kHz;
•    Bandwidth: 100 Hz to 10 kHz;
•    Built-in microphone sensitivity: 7-9 m;
•    PC interface: USB 1.1. Data transfer rate up to 5.5 Mb;
•    Charging of the Li-Pol rechargeable battery from a USB port of a computer.
