Edic-mini Tiny16 U352

Specification

Height 65mm
Width 54mm
Thickness 19 mm
Weight 23 g
Case Plastic
Record time (memory capacity in hours) 300h, 600h, 1200h, 2400h
Battery life in record mode 305h
Power supply 141
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

Modifications:
U352-300h, U352-600h  (last digits in the models' names specify the maximum recording duration in hours - sample rate 8 kHz, and 2 bit ADPCM).

Please note: modification 600h can be made only to order.

Our new recorder is intended for the users dealing with large amount of new information as well as for those who have no time for charging the device. Digital recorder Edic-mini Tiny 16 U352 is for the users who don’t care about the compactness or special design of the device. It is intended for those who primarily need such characteristics as long autonomous operation, high recording quality, easy control and high sensitivity of the microphone.
Edic-mini Tiny 16 U352 provides audio recording up to 2400 hours, whereas the device is powered by 3 AA batteries or rechargeable batteries that carry out continuous operation for the whole 17 days.

The distinctive features of the device are as follows:

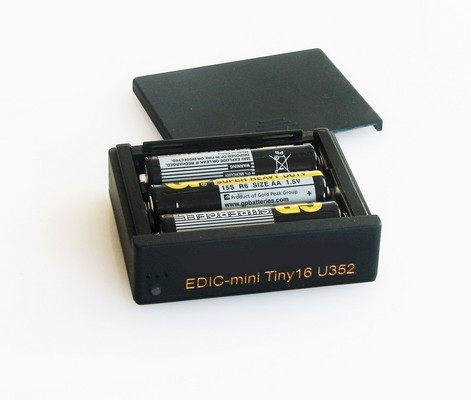

•    universal power supply – 3 AA batteries or rechargeable batteries;
•    high level of autonomy;
•    plastic case with magnetic cover.

Edic-mini Tiny 16 U352 is powered by three common AA batteries providing continuous recording up to 305 hours. The recorder is also compatible with widespread AA rechargeable batteries that can be charged by a common cheap charging device.

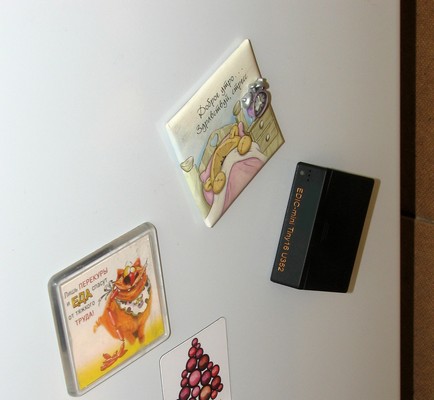

A discreet plastic case with magnetic cover makes it possible to attach the recorder to any metallic surface quickly and safely. Besides the case of the recorder can be decorated with laser engraving turning the device to a remarkable present.
Like all the models of the Tiny 16 series, Edic-mini Tiny 16 U352 is characterized by a simplified functionality in combination with high recording quality.

Technical characteristics:

•    Dimensions: 65х54х19 mm;
•    Weight: 23g (batteries not included);
•    Recording duration: from 300 to 2400 hours;
•    Operating temperature range: 0…+40˚ C (32…+104 F);
•    Sensitivity of built-in microphone: up to 12 m;
•    Recording mode: mono;
•    Signal processing by a 16-bit audio codec;
•    Built-in AGC system;
•    Frequency band: 0,1 – 10 kHz;
•    Dynamic range: -80 dB;
•    Battery life in record mode  (sampling rate 8 K Hz, without compression): up to 305 hours;
•    Battery life in record mode with VAS (audio signals below threshold): up to 2 months
•    Battery life in stand-by mode: up to 1 year.


Distinctive features:

•    universal power supply – 3 AA batteries or rechargeable batteries;
•    high level of autonomy: up to 305 hours;
•    plastic case;
•    dimensions: 65х54х19 mm;
•    weight: 23 g;
•    high recording quality as well as high level of microphone sensitivity due to the use of 16-bit codec and AGC system;
•    one side of the recorder serves as magnet.

Height 65mm
Width 54mm
Thickness 19 mm
Weight 23 g
Case Plastic
Record time
(memory capacity in hours)
300h, 600h, 1200h, 2400h
Battery life in record mode 305h
Power supply 141
Battery life in VAS mode
(acoustic signal below the threshold)
2 months
Battery life in stand-by mode 12 months
Built-in flash memory 2 Gb, 4 Gb, 8 Gb, 16Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -80 Db
Sample rate 5, 6.6, 8, 10, 13.3, 20
Voice Activating System YES
Timer recording YES

Delivery set:


Voice Recorder;
USB cable to connect to the PC;
3 AA batteries;
Software CD (or flash drive)
Instructions.

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
