Edic-mini Tiny16 A40

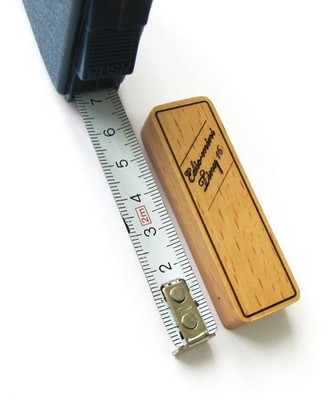

Height 62 mm
Width 20 mm
Thickness 11 m
Weight 11 g
Case Wooden
Record time (memory capacity in hours) 300h, 1200h
Battery life in record mode 40 h
Power supply 12
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

A40 -300h, A40-600h, A40 -1200h (last digits in the models' names show the maximum recording duration (sampling rate 8 kHz, 2 bit ADPCM) in hours).

Tiny16 series is very popular among audio recording professionals as well as amateurs because of its high technical characteristics: 16 bit audio codec, which provides high quality recording, build-in AGC system, which allows to adjust the record mode to the environmental conditions and high sensitive microphone (10-12 m). This is why we are eager to add the brand-new model, which will answer the requirements of this series – A40.

This rechargeable battery-powered device can record up to 40 hours to the build-in flash-memory with up to 1200h capacity. The recorder has the only mechanical or touch sensitive button. The absence of standard USB slot makes it look a beautiful accessory. A40 is ideal as a stylish gift. And above all, wooden case is the most ecological and natural material. Carving will be optional according to the customer's wishes - we are ready to fulfill any of your cherished dreams.

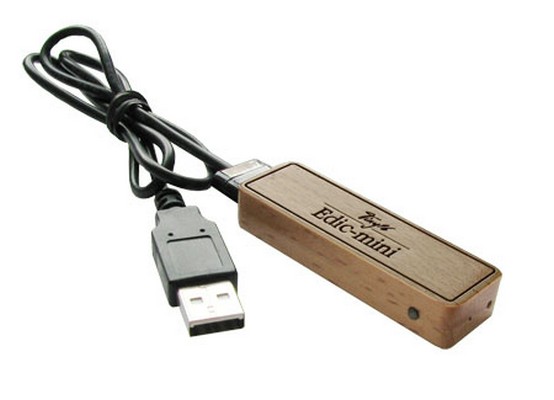

The recorder can be connected to PC via USB port with the supplied cable.

The supplied software makes it possible:

    *     to save the recorded messages as standard sound files;
    *     to set the recorder parameters;
    *     to use the recorder as a flash-disc of 2-8 GB, as well as to store and transfer files;
    *     there is an opportunity to update the recorder firmware using the software.

Our product differs from other gadgets that are available on the market by:

    *     High quality recording;
    *     Low power consumption;
    *     Built-in USB interface (exchange speed up to 0.7 Mb/sec);
    *     High sensitivity microphone;
    *     Wide frequency band;
    *     Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and a one control button, the recorder's LED indicates recorder's operating modes;
    *     Long recording duration (from 300 to 1200 hours depending on memory capacity);
    *     Password protection (to secure the data, a password may be set in the recorder, which prevents another user from unauthorized access to the recorder content and settings);
    *     Voice Activation System (which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made.);
    *     Timer recording;
    *     Digital signature of recordings.
Height 62 mm
Width 20 mm
Thickness 11 m
Weight 11 g
Case Wooden
Record time
(memory capacity in hours)
300h, 1200h
Battery life in record mode 40 h
Power supply 12
Battery life in VAS mode
(acoustic signal below the threshold)
480 h
Battery life in stand-by mode 24 months
Built-in flash memory 2 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -72 dB
Sample rate 5, 6.6, 8, 10, 13.3, 20
Voice Activating System YES
Timer recording YES
Gift Y

Delivery set:

  Voice Recorder;
  USB cable;
  Software CD;


Distance 1m:
A40 1m.wav

Distance 3m:
A40 3m.wav

Distance 5m:
A40 5m.wav
