Edic-mini Tiny16 B43

Specification

Height 85 mm
Width 13 mm
Thickness 13 mm
Weight 14 g
Case Metal
Record time (memory capacity in hours) 300h, 600h, 1200h
Battery life in record mode 70h
Power supply 13
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

Modifications:
B43-300h, B43-600h, A43-1200h (last digits in the models' names specify the maximum recording duration in hours - sample rate 8 kHz, and 2 bit ADPCM).

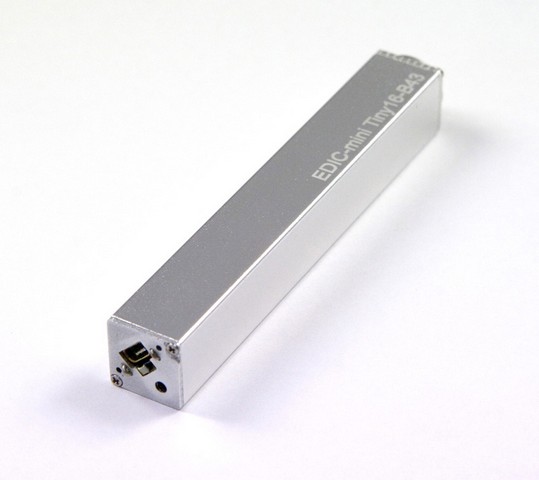

The new model is produced in an exceptionally long metallic case (85 x 13 x 13 mm) available in five colours. Recording control is carried out with a switch located in the recorder's end face.
The distinctive feature of this model is its power supply - for 70 hours of work it requires one standard battery or a AAA rechargeable battery.

Technical characteristics:

  •   Metallic case;
  •   Dimensions: 85 x 13 x 13 mm;
  •   Power-supply: standard AAA battery;
  •   Weight: 14 g ;
  •   Operating temperature range: 0...+40C (32...+104F);
  •   Recording time on a built-in memory: up to 1200 hours;
  •   Sampling rate up to 20K Hz;
  •   Codec capacity: 16 bits;
  •   Available as a flash media;
  •   Recording mode: mono;
  •   Recording time (8 K Hz, without compression): up to 70 hours;
  •   Battery life in record mode with VAS (audio signals below threshold): up to 11 days;
  •   Battery life in stand-by mode: up to 9 months


";s:4:"TYPE";s:4:"html";}
Height 85 mm
Width 13 mm
Thickness 13 mm
Weight 14 g
Case Metal
Record time
(memory capacity in hours)
300h, 600h, 1200h
Battery life in record mode 70h
Power supply 13
Battery life in VAS mode
(acoustic signal below the threshold)
264h
Battery life in stand-by mode 9 months
Built-in flash memory 2 Gb, 4 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -80 dB
Sample rate 5, 6.6, 10, 13.3, 20
Voice Activating System YES
Timer recording YES

Delivery set:


Voice Recorder;
USB-cable;
Software CD;
AAA battery;
Instructions.

Distance 1m:
B43 1m.wav

Distance 3m:
B43 3m.wav

Distance 5m:
B43 5m.wav

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
