Edic-mini Tiny16 A405


Height 58 mm
Width 38 mm
Thickness 17 mm
Weight 37 g
Case Wooden
Record time (memory capacity in hours) 300h, 1200h
Battery life in record mode 250h
Power supply 12
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

Miniature digital voice recorder Edic-mini Tiny 16 A405 is intended for professional audio voice recording into the built-in flash memory, the recordings can be further uploaded onto a computer. The Recorder can be used simultaneously as a voice recorder when recording messages and a flash media when storing and transferring data of any standards.

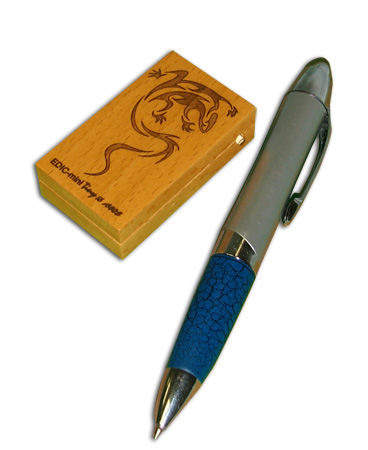

Developing the idea of decorative gift recorders our company brought to life two new models with wooden cases. Being pleasant to look at as well as to touch, wood as ecofriendly material is in constant demand. We can customize the case with an original engraving - the images can be optional according to the customer's wishes. That makes this product individual and unique!

Moreover, the new models have substantially longer battery life in record mode with fully charged battery – up to 250 hours, which makes them easy to use when making a long recording without any single thought of charging the device.

Tiny16 A405 supports all the technical characteristics of the Tiny16 series.

The supplied software makes it possible:
  •      To save the recorded messages on PC in the form of standard sound files;
  •      To restore compressed pauses
  •      To set the DVR parameters
  •      To perform administrative work with the recorder;
  •      To update software

Technical characteristics:

  •      Recording time (8 K Hz, without compression): 250 hours at the battery capacity 520 mH
  •      The last digits show the recording time in hours (at 8 K Hz sampling rate and 2 –bits ADPCM) 300h – 300 hours (2Gb), 1200h – 1200 hours (8 Gb)
  •      Exchange speed: up to 0,7 Mb
  •      Operating temperature range: 0…+40? C (32…+104?F)
  •      Frequency band when recording:100-1000 Hz
  •      Signal-to-noise ratio: 72 dB
  •      Built-In microphone sensitivity: 10- 12 m
  •      Storage life of built-in flash memory: minimum 10 years
  •      Charging time: 3 hours
  •      Battery : Li-Pol


  • Wooden case;
  • USB interface (exchange speed up to 0,7 Mb);
  • VAS (Voice Activating System) to compress pauses while recording;
  • Built-in real time clock;
  • Timers to turn the recorder on at the preset time;
  • Information protection system;
  • AGC system to adjust the amplification according to the external acoustic conditions.

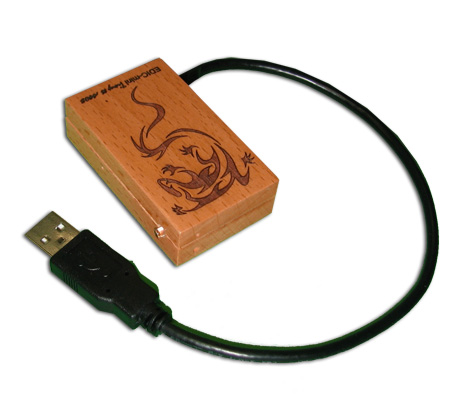

The recorder will start charging automatically when connected to USB-connector by the shipped USB-cable. While charging, the recorder’s LED is flashing gradually with a five-second interval. After the rechargeable battery is fully charged, the LED will flash without intervals.

Height 58 mm
Width 38 mm
Thickness 17 mm
Weight 37 g
Case Wooden
Record time
(memory capacity in hours)
300h, 1200h
Battery life in record mode 250h
Power supply 12
Battery life in VAS mode
(acoustic signal below the threshold)
Battery life in stand-by mode 12 months
Built-in flash memory 2 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -72 dB
Sample rate 5, 6.6, 10, 13.3, 20
Voice Activating System YES
Timer recording YES
Gift Y

Delivery set:

     Voice Recorder;
     USB cable;
     Software CD;
     Wooden case.

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
