Edic-mini LCD mSD-A

Specification

Height 50 mm
Width 51 mm
Thickness 13 mm
Weight 47 g
Case Metal
Record time (memory capacity in hours) 300h
Battery life in record mode 80h
Power supply 12
Modifications In stock in Qty Buy
USA Russia

Select modifications


No longer manufactured!

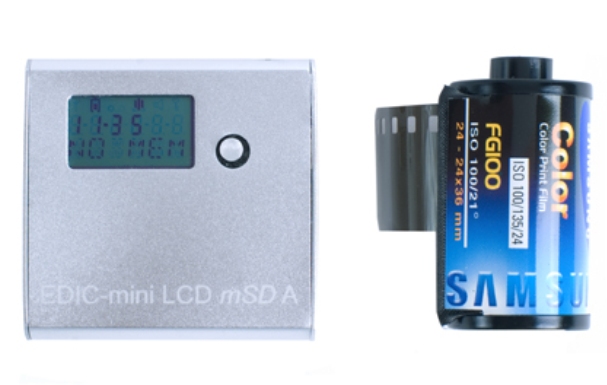

We are glad to present you a truly professional device intended for high quality recording of voice messages into a replaceable mSD card. MiniSD cards meet common standards and ranging in capacities, they are in constant demand. Once a suitable miniSD is chosen, it provides the recorder with necessary memory capacity.

The main distinctive feature of this model is a built-in rechargeable battery, which provides continuous operation duration up to 80 hours.
The recorder is also remarkable for its solid light metallic case, which defends the device against electromagnetic interference. mSD-A can be used simultaneously as a voice recorder when recording messages and a flash media when storing and transferring data of any standards.

Being extremely popular among our customers, Edic-mini LCD mSD-A is now produced in metallic case and is provided with a built-in rechargeable battery. Recording onto a standard miniSD card, the option to connect a card reader (USB 2.0 interface) – all these characteristics are going to make your work with the recorder much easier. Light and solid case will defend the recorder against electromagnetic interference.

Distinctive features:


•    Light aluminium case;
•    LCD indicator 22,2x12,9 mm;
•    Joystick to control the DVR
•    Dimensions: 51x50x13 mm
•    Weight: 47 g (mSD card not included)
•    Power supply: Li-Pol rechargeable battery (battery capacity 950 mH)
•    Continuous operation duration in record mode at fully charged battery: up to 80 hours
•    Recording into replaceable mSD flash memory card at the capacity 2Gb
•    Record time of mSD card at the capacity 2 Gb: up to 300 hours
•    Opportunity to use card-reader with USB 2.0 interface at the exchange speed up to 5, 5 Mb/s
•    VAS system to compress pauses when recording;
•    Built-in real time clock;
•    Timers for automatic scheduled recording;
•    Information protection system.


Technical characteristics:


•    Battery life in stand-by mode: 2 years
•    Frequency band 100-4000 Hz
•    Signal-to-noise ratio: -72dB
•    Built-In microphone sensitivity: 7-9 m
•    Charging time: from 2 to 3 hours
•    Operating temperature range: 0-40?C


Height 50 mm
Width 51 mm
Thickness 13 mm
Weight 47 g
Case Metal
Record time
(memory capacity in hours)
300h
Battery life in record mode 80h
Power supply 12
Battery life in stand-by mode 24 months
Built-in flash memory 2 Gb
Compact flash card capacity mini-SD card, 2 Gb
Interface USB 2.0
Audio recording mode Mono
Frequency band 100-4000 Hz
Dynamic range -72 dB
Sample rate 4, 8
Voice Activating System YES
Timer recording YES
Current consumption 1,5 mA - 3,6 mA (depending on the recording profile)

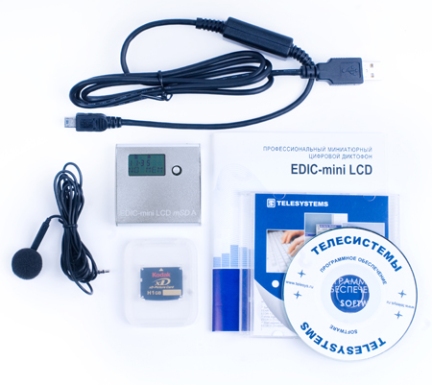

Delivery set:

a:2:{s:4:"TEXT";s:212:"
    Voice recorder
    USB adapter;
    Headphones;
    2 Gb mSD memory card;
    CD with Software;
    Instructions.
";s:4:"TYPE";s:4:"html";}

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
