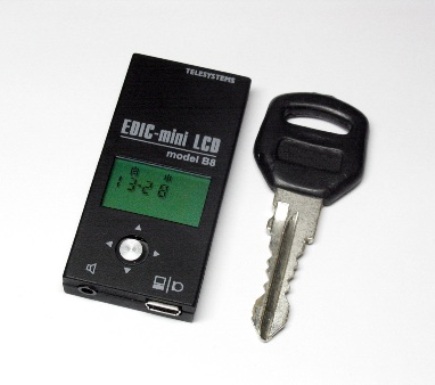

Edic-mini LCD B8
Specification
| Height | 59 mm |
| Width | 28 mm |
| Thickness | 9 mm |
| Weight | 20 g |
| Case | Plastic |
| Record time (memory capacity in hours) | 300h, 600h, 1200h |
| Battery life in record mode | up to 120h |
| Power supply | battery |
| Modifications | In stock in | Qty | Buy | |
| USA | Russia | |||
Select modifications
Description
Modifications: B8-300h, B8-600h, B8-1200h, B8-2400 (the last digits in the model's name show the maximum recording duration in hours – sampling rate 8 k Hz, 2 bit ADPCM).
Modifications: B8-300h, B8-600h, B8-1200h, B8-2400 (the last digits in the model's name show the maximum recording duration in hours – sampling rate 8 k Hz, 2 bit ADPCM).
Please note: modification 600h can be made only to order.
B8 model is produced in a plastic case. Dimensions: 59x28x9 mm, weight: 20g. Battery: CR2450.
Continuous operation duration:
- At play back from PC: 100 ... 6000 Hz
- At play back via earphone: 100 ... 3800 Hz
- Audio sample rate: 16000, 8000, 4000 Hz
- Without compression (linear), sample rate is 8 kHz, 128 Kbit/s, k=8
- Without compression (linear), sample rate is 4 kHz, 64 Kbit/s, k=4
- Logarithmic compression, sample rate is 16 kHz, 128 Kbit/s, k=8
- Logarithmic compression, sample rate is 8 kHz, 64 Kbit/s, k=4
- Logarithmic compression, sample rate is 4 kHz, 32 Kbit/s, k=2
- Modified 4-bit ADPCM, sample rate is 8 kHz, 32 Kbit/s, k=2
- Modified 2-bit ADPCM, sample rate is 8 kHz, 16 Kbit/s, k=1
- Modified 4-bit ADPCM, sample rate is 4 kHz, 16 Kbit/s, k=1
- Modified 2-bit ADPCM, sample rate is 4 kHz, 8 Kbit/s, k=0.5
where k is the coefficient, showing how many times the maximum record time decreases at record quality increase.
- Stand-by mode (with LCD off): 0,014 mA
- Record mode (depending on the recording profile): 1,5 mA - 3,6 mA
- VAS mode, audio level is lower than the threshold value: less than 0.2 mA
B8 model is produced in a plastic case. Dimensions: 59x28x9 mm, weight: 20g. Battery: CR2450.
Continuous operation duration:
- in record mode: up to 120 hours;
- in playback mode: up to 50 hours;
- in standby mode: 2 years;
- in VAS mode: 2500 hours.
Technical parameters:
- Recording time in ExtraLongPlay mode (modified 2-bit ADPCM, sample rate 8 kHz, 16 Kb\s) 300-2400 hours (flash memory 2-12 GB);
- Supply voltage: 2,7... 3,2V
- Operation temperature: -20 ... +50 °C
- Maximal audio band:
- At play back from PC: 100 ... 6000 Hz
- At play back via earphone: 100 ... 3800 Hz
- Audio sample rate: 16000, 8000, 4000 Hz
- Codec resolution: 16 digits (using external microphone the dynamic range is 18 digits)
- Sample rate: -72 dB
- Quality, format and data recording density:
- Without compression (linear), sample rate is 8 kHz, 128 Kbit/s, k=8
- Without compression (linear), sample rate is 4 kHz, 64 Kbit/s, k=4
- Logarithmic compression, sample rate is 16 kHz, 128 Kbit/s, k=8
- Logarithmic compression, sample rate is 8 kHz, 64 Kbit/s, k=4
- Logarithmic compression, sample rate is 4 kHz, 32 Kbit/s, k=2
- Modified 4-bit ADPCM, sample rate is 8 kHz, 32 Kbit/s, k=2
- Modified 2-bit ADPCM, sample rate is 8 kHz, 16 Kbit/s, k=1
- Modified 4-bit ADPCM, sample rate is 4 kHz, 16 Kbit/s, k=1
- Modified 2-bit ADPCM, sample rate is 4 kHz, 8 Kbit/s, k=0.5
where k is the coefficient, showing how many times the maximum record time decreases at record quality increase.
- Data transfer rate via USB-interface: up to 1,5 Mb\s
- Current consumption:
- Stand-by mode (with LCD off): 0,014 mA
- Record mode (depending on the recording profile): 1,5 mA - 3,6 mA
- VAS mode, audio level is lower than the threshold value: less than 0.2 mA
- Built-in microphone sensitivity 7-9 m
Characteristics
| Height | 59 mm |
| Width | 28 mm |
| Thickness | 9 mm |
| Weight | 20 g |
| Case | Plastic |
|
Record time (memory capacity in hours) |
300h, 600h, 1200h |
| Battery life in record mode | up to 120h |
| Power supply | battery |
|
Battery life in VAS mode (acoustic signal below the threshold) |
up to 3 months |
| Battery life in stand-by mode | up to 24 months |
| Built-in microphone sensetivity | up to 9 m |
| Built-in flash memory | 2 Gb, 4 Gb, 8 Gb |
| Interface | USB 1.1 |
| Audiocodec | 16 bit |
| Audio recording mode | Mono |
| Recording format | WAV |
| Compression method | without compression, uLaw |
| Frequency band | 100-6000 Hz |
| Dynamic range | -72 dB |
| Sample rate | 4, 8, 16 |
| Controls | button |
| Indication of operation | LED |
| Voice Activating System | YES |
| Timer recording | YES |
| Current consumption | 1,5 mA - 3,6 mA in record mode |
Delivery set:
Voice recorder
Headphones
USB adapter
2 batteries
Instructions
Product files
Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
| Software | Firmware | Manual to software |
Series manual | Supplement to the model |
| RecManager for LCD. Version July, 2013 Drivers for USB 2.0 adapter SoundProcessor_0.5.9 Edic-Suite program | Updater 1.3. July, 2009 | RecManager Manual for Edic-mini LCD series. Version , March, 2008 | Series catalogue file Series Manual for Edic-mini LCD. Version August, 2008 | Catalogue file |

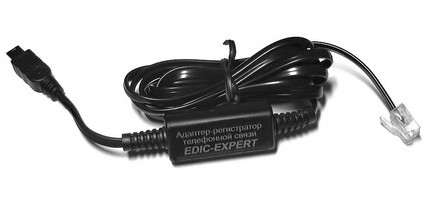

Accessories
