Edic-mini Tiny16 B26


Height 75 mm
Diameter 20 mm
Weight 20 g
Case Metal
Record time (memory capacity in hours) 300h, 1200h, 2400h
Battery life in record mode 320h
Power supply 13
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

Modifications: B26-300h, B26-1200h, В26-2400h (last digits in the models' names show the maximum recording duration in hours - sampling rate 8 kHz, 2 bit ADPCM).

Tiny16 series is very popular among audio recording professionals as well as amateurs because of its high technical characteristics: 16 bit audio codec, which provides high quality recording, build-in AGC system, which allows to adjust the record mode to the environmental conditions and high sensitive microphone (10-12 m).

The recorder can be connected to PC via USB port with the supplied cable.

The supplied software makes it possible:

  •     to save the recorded messages as standard sound files;
  •     to set the recorder parameters;
  •     to use the recorder as a flash-disc, as well as to store and transfer files;
  •     there is an opportunity to update the recorder firmware using the software.

Our product differs from other gadgets that are available on the market by:

  •     High quality recording;
  •     Low power consumption;
  •     Built-in USB interface (exchange speed up to 0.7 Mb/sec);
  •     High sensitivity microphone;
  •     Wide frequency band;
  •     Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and a one control button, the recorder's LED indicates recorder's operating modes;
  •     Long recording duration (up to 2400 hours depending on memory capacity);
  •     Password protection (to secure the data, a password may be set in the recorder, which prevents another user from unauthorized access to the recorder content and settings);
  •     Voice Activation System (which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made.);
  •     Timer recording;
  •     Digital signature of recordings.

Height 75 mm
Diameter 20 mm
Weight 20 g
Case Metal
Record time
(memory capacity in hours)
300h, 1200h, 2400h
Battery life in record mode 320h
Power supply 13
Battery life in VAS mode
(acoustic signal below the threshold)
Battery life in stand-by mode 60 months
Built-in flash memory 2 Gb, 8 Gb, 16Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range - 80 dB
Sample rate 5, 6.6, 10, 13.3, 20
Voice Activating System YES
Timer recording YES

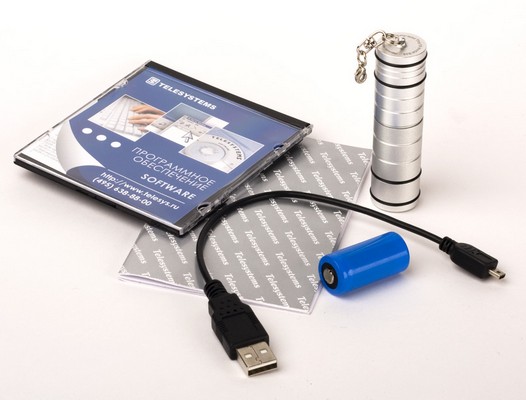

Delivery set:

Voice Recorder
USB cable
Software CD

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
