Edic-mini Tiny Solar


Height 36 mm
Width 36 mm
Thickness 9 mm
Weight 15 g
Case Plastic
Record time (memory capacity in hours) 300h, 1200h
Battery life in record mode unlimited
Power supply 14
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

The main distinctive feature of this model is the solar battery (in addition to a Li-Pol battery), which allows endless recording mode, the so-called "black box" mode.

Built-in microphone sensitivity: 7-9 m

The recorder can work with the solar battery exposed to bright light and its rechargeable battery turned off:

You can use the recorder in black box mode, while recharging the rechargeable battery with the solar battery. This mode allows continuous loop recording without external power supply. If you place the recorder near a window, puting the solar battery to the sun. The recorder will continuously record the last dozens of hours; this function is useful for security purposes. In case of unexpected event, you can playback the previously recorded audio. In a sunny day, the solar battery can provide a charging current of up to 12 mA. If you expose the battery to sunshine for 10 hours, it is enough to fully charge the recorder’s rechargeable battery. In black box mode, it is recommended to use the VAS (Voice Activating System) and the loop recording modes. About 2 hours of sun light a day is enough to recharge the recorder’s rechargeable battery. In VAS mode, the rechargeable battery provides 7 days of power supply for the recorder that allows skipping the days without sunshine.

The recorder can be connected to PC via USB port with the supplied cable.

The supplied software makes it possible:

    * to save the recorded messages as standard sound files;
    * to set the recorder parameters;
    * to use the recorder as a flash-disc of 2-8 GB, as well as to store and transfer files;
    * there is an opportunity to update the recorder firmware using the software.

Our product differs from other gadgets that are available on the market by:
  •  High quality recording;
  •  Low power consumption;
  •  Built-in USB interface (exchange speed up to 0.7 Mb/sec);
  •  High sensitivity microphone;
  •  Wide frequency band;
  •  Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and a one control button, the recorder's LED indicates recorder's operating modes;
  •  Long recording duration (from 300 to 1,200 hours depending on memory capacity);
  •  Password protection (to secure the data, a password may be set in the DVR, which prevents another user from unauthorized access to the DVR content and settings);
  •  Voice Activation System (which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made.);
  •  Timer to turn recording on;
  • Digital signature of recordings.

Height 36 mm
Width 36 mm
Thickness 9 mm
Weight 15 g
Case Plastic
Record time
(memory capacity in hours)
300h, 1200h
Battery life in record mode unlimited
Power supply 14
Battery life in VAS mode
(acoustic signal below the threshold)
Battery life in stand-by mode up to 4 months
Built-in flash memory 2 Gb, 4 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -64 dB
Sample rate 5.5, 8, 11, 16, 22
Voice Activating System YES
Timer recording YES

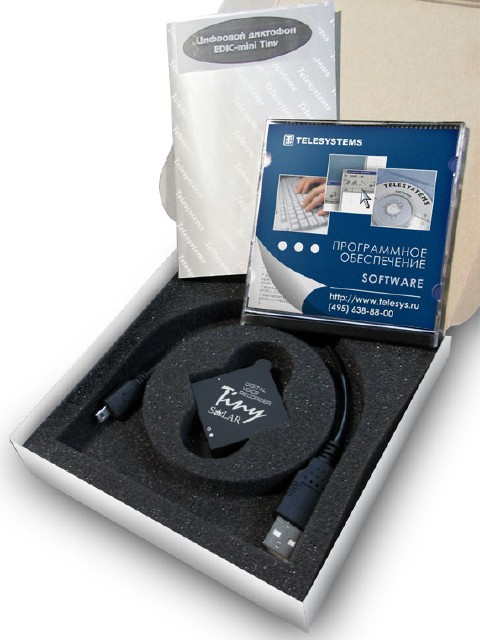

Delivery set:

Voice Recorder
USB cable
Software CD

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
