Edic-mini Tiny Stereo-M

30
40
90

Specification

Height 35 mm
Width 20 mm
Thickness 12 mm
Weight 9 g
Case Plastic
Record time (memory capacity in hours) 300h, 1200h
Battery life in record mode 50h
Power supply 12
Modifications In stock in Qty Buy
USA Russia

Select modifications

+
-
No longer manufactured!

Modifications: Stereo-M-300h, Stereo-M-600h, Stereo-M-1200h (the last digits in the model's name show the maximum recording duration in hours – sampling rate 8 k Hz, 2 bit ADPCM)

Please note: modification 600h can be made only to order.

The model supports stereo recording via two recording channels!

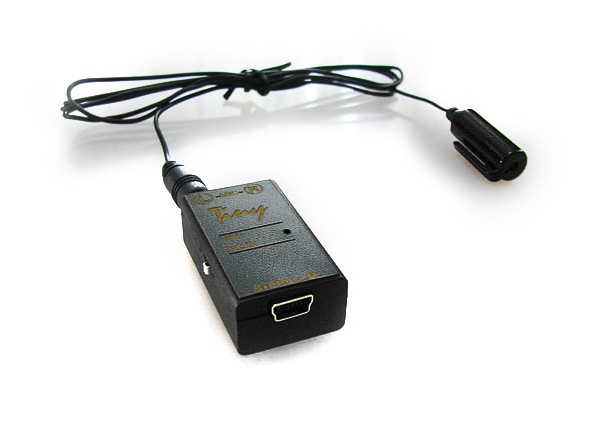

This model records high quality stereo audio signal from two external microphones on built-in flash memory. It is powered by the rechargeable battery (with 120 mAh capacity) and can be charged from USB port of a PC.

  •  Built-in microphone sensitivity: 7-9 m;
  •  For recording stereo there is an opportunity to connect an external microphone, which is on the delivery set;
  •  Recording formats: Mono/Stereo.

The recorder can be connected to PC via USB port with the supplied cable.

The supplied software makes it possible:

    * to save the recorded messages as standard sound files;
    * to set the recorder parameters;
    * to use the recorder as a flash-disc of 2-8 GB, as well as to store and transfer files;
    * there is an opportunity to upd ate the recorder firmware using the software.

Our product differs from other gadgets that are available on the market by:
  •   High quality recording;
  •   Low power consumption;
  •   Built-in USB interface (exchange speed up to 0.7 Mb/sec);
  •   High sensitivity microphone;
  •   Wide frequency band;
  •   Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and a one control button, the recorder's LED indicates recorder's operating modes;
  •   Long recording duration (from 300 to 1,200 hours depending on memory capacity);
  •   Password protection (to secure the data, a password may be set in the DVR, which prevents another user from unauthorized access to the DVR content and settings);
  •   Voice Activation System (which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the se ttings made.);
  •   Timer to turn recording on;
  •   Digital signature of recordings.


Height 35 mm
Width 20 mm
Thickness 12 mm
Weight 9 g
Case Plastic
Record time
(memory capacity in hours) 		300h, 1200h
Battery life in record mode 50h
Power supply 12
Battery life in VAS mode
(acoustic signal below the threshold) 		200h
Battery life in stand-by mode 6 months
Built-in flash memory 2 Gb, 4 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono or Stereo
Frequency band 100 Hz to 10 kHz
Dynamic range -64
Sample rate 5.5, 8, 11, 16, 22
Voice Activating System YES
Timer recording YES

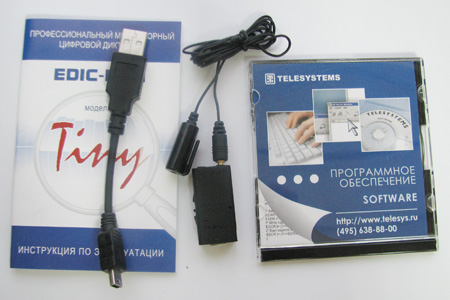

Delivery set:


Voice Recorder
USB cable
External microphone (for recording stereo)
Software CD
Instructions

Distance 1m:
Stereo-M 1m.wav

Distance 3m:
Stereo-M 3m.wav

Distance 5m:
Stereo-M 5m.wav
