Edic-mini Tiny B32
Specification
| Height | 43 mm |
| Width | 23 mm |
| Thickness | 5.3 mm |
| Weight | 10 g |
| Case | Metal |
| Record time (memory capacity in hours) | 300h, 600h, 1200h |
| Battery life in record mode | 90h |
| Power supply | 13 |
| Modifications | In stock in | Qty | Buy | |
| USA | Russia | |||
Select modifications
Description
No longer manufactured!
Modifications: B32-300h, B32-600h, B32-1200h (the last figures in the model name show the maximum record time in hours when sampling rate is 8 KHz and compression is 2bits ADPCM).
";s:4:"TYPE";s:4:"html";}
Modifications: B32-300h, B32-600h, B32-1200h (the last figures in the model name show the maximum record time in hours when sampling rate is 8 KHz and compression is 2bits ADPCM).

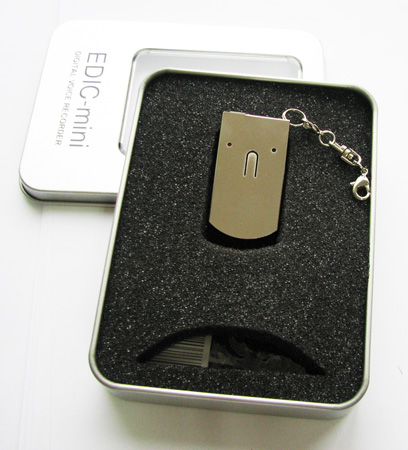

The recorder is produced in two variations: in silver metal and golden metal rectangular case.
B32 consumes power from 1 CR2032 battery (there are 2 batteries on the delivery set) and can be operated with slight pressing the membrane button, situated on the recorder's case. A small textile strap that is available in the shipping box can be used for wearing the recorder around the neck. You can also use the recorder as a key trinket.
The recorder can be connected to PC via USB port with the supplied cable.
The supplied software makes it possible:
- to save the recorded messages as standard sound files;
- to set the recorder parameters;
- to use the recorder as a flash-disc of 2-8 GB, as well as to store and transfer files;
- there is an opportunity to update the recorder firmware using the software.
Our product differs from other gadgets that are available on the market by:
- High quality recording;
- Low power consumption;
- Built-in USB interface (exchange speed up to 0.7 Mb/sec);
- High sensitivity microphone;
- Wide frequency band; Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and a one control button, the recorder's LED indicates recorder's operating modes;
- Long recording duration (from 300 to 1,200 hours depending on memory capacity);
- Password protection (to secure the data, a password may be set in the DVR, which prevents another user from unauthorized access to the DVR content and settings);
- Voice Activation System (which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made.);
- Timer to turn recording onDigital signature of recordings.
Characteristics
Voice Recorder
Battery (CR2032) – 2 pieces
USB cable
Software CD
Instructions
| Height | 43 mm |
| Width | 23 mm |
| Thickness | 5.3 mm |
| Weight | 10 g |
| Case | Metal |
|
Record time (memory capacity in hours) |
300h, 600h, 1200h |
| Battery life in record mode | 90h |
| Power supply | 13 |
|
Battery life in VAS mode (acoustic signal below the threshold) |
190h |
| Battery life in stand-by mode | 8.5 months |
| Built-in flash memory | 2 Gb, 4 Gb, 8 Gb |
| Interface | USB 1.1 |
| Audio recording mode | Mono |
| Frequency band | 100 to |
| Dynamic range | - 64 Db |
| Sample rate | 5, 8, 11, 16, 22 |
| Voice Activating System | YES |
| Timer recording | YES |

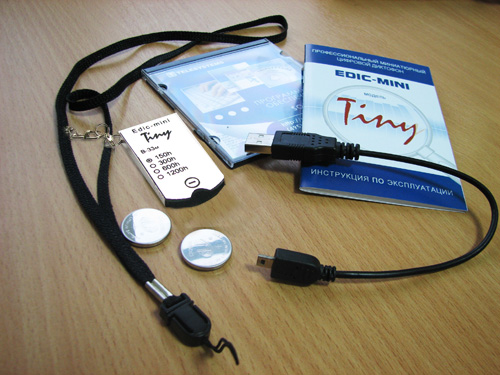

Delivery set:
Voice Recorder
Battery (CR2032) – 2 pieces
USB cable
Software CD
Instructions
Product files
Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com
