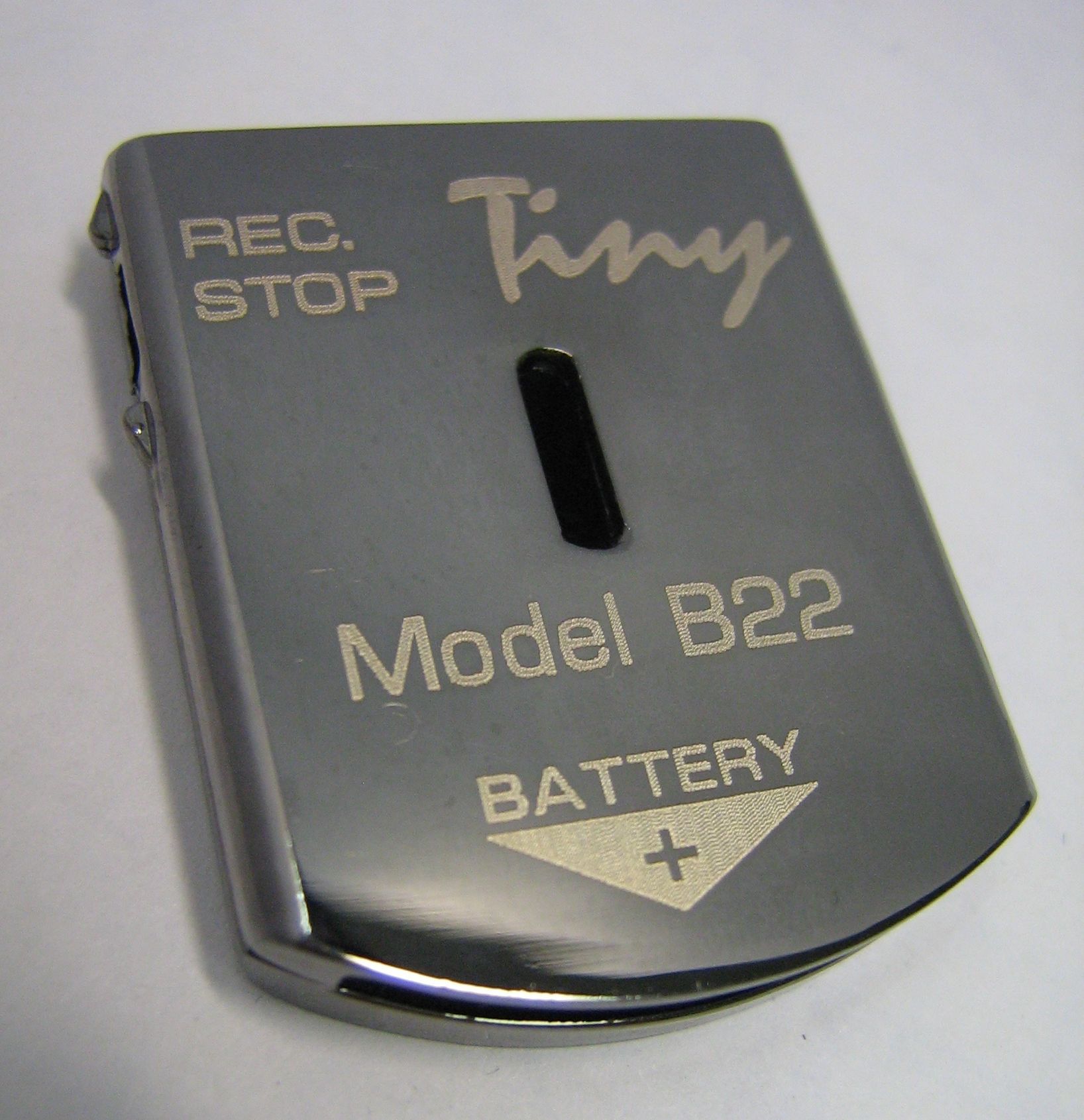

Edic-mini Tiny B22


Height 31 mm
Width 25 mm
Thickness 6 mm
Weight 13 g
Case Metal
Record time (memory capacity in hours) 300h, 1200h
Battery life in record mode 24h
Power supply 13
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

Diminutive and clever!

Modifications: B22-300h (last digits in the models' names show the maximum recording duration in hours - sampling rate 8 kHz, 2 bit ADPCM).

This recorder is, in fact even smaller, than its predecessors - the Guinness World Records winners: its size is only 6x25x31, but nevertheless it has extensive characteristics, providing up  to 1200 hours depending on built-in memory volume and selected quality settings. The recorder is powered by a lithium battery.

The simple and consistent design of the model were appreciated by many audio recording specialists. The combination of convenient interface, super-miniature size and multiple functions of the recorder made it one of the most popular models.

The recorder can be connected to PC via USB port with the supplied cable.

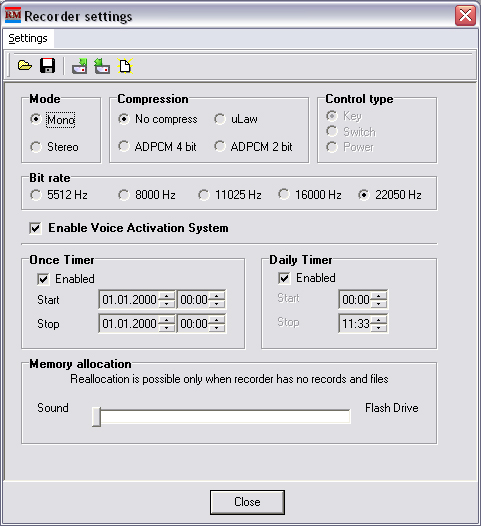

The supplied software makes it possible:

    * to save the recorded messages as standard sound files;
    * to set the recorder parameters;
    * to use the recorder as a flash-disc of 2-8 GB, as well as to store and transfer files;
    * there is an opportunity to update the recorder firmware using the software.

Our product differs from other gadgets that are available on the market by:

  •   High quality recording;
  •   Low power consumption;
  •   Built-in USB interface (exchange speed up to 0.7 Mb/sec);
  •   High sensitivity microphone;
  •   Wide frequency band;
  •   Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and a one control button, the recorder's LED indicates recorder's operating modes;
  •   Long recording duration (from 300 to 1,200 hours depending on memory capacity);
  •   Password protection (to secure the data, a password may be set in the DVR, which prevents another user from unauthorized access to the DVR content and settings);
  •   Voice Activation System (which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made.);
  •   Timer to turn recording on;
  •   Digital signature of recordings.

Height 31 mm
Width 25 mm
Thickness 6 mm
Weight 13 g
Case Metal
Record time
(memory capacity in hours)
300h, 1200h
Battery life in record mode 24h
Power supply 13
Battery life in VAS mode
(acoustic signal below the threshold)
Battery life in stand-by mode 3 months
Built-in flash memory 2 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -64 dB
Sample rate 5.5, 8, 11, 16, 22
Voice Activating System YES
Timer recording YES
Current consumption 2 mA in recording mode at 3V voltage
Gift Y

Delivery set:

Voice Recorder
Battery (AG13, d11.6x5.4mm of 1.5V) – 2 pieces
USB cable
Software CD

Distance 1m:
B22 1m.wav

Distance 3m:
B22 3m.wav

Distance 5m:
B22 5m.wav
