Edic-mini Tiny B21

Specification

Height 40 mm
Width 15 mm
Thickness 10 mm
Weight 8 g
Case Plastic
Record time (memory capacity in hours) 300h, 1200h
Battery life in record mode alkaline battery - up to 10h, zinc-air battery - up to 60h
Power supply 13
Modifications In stock in Qty Buy
USA Russia

Select modifications

No longer manufactured!

The Guinness World Records winner!!!


Modifications: B21-300h, B21-600h, B21-1200h (the last digits in the model's name show the maximum recording duration in hours – sampling rate 8 k Hz, 2 bit ADPCM)

Please note: modifications 600h and 1200h can be made only to order.

This model features record time from 300 to 1200 hours depending on built-in memory volume and selected quality settings. It stores data in  the built-in flash memory with the size from 2 Gb to8 Gb (depending on the modification). The recorder is powered by one replaceable AG13 battery.

The recorder can be connected to PC via USB port with the supplied cable.

The supplied software makes it possible:

  •   to save the recorded messages as standard sound files;
  •   to set the recorder parameters;
  •   to use the recorder as a flash-disc of 2-8 GB, as well as to store and transfer files;
  •   there is an opportunity to upd ate the recorder firmware using the software.

Our product differs from other gadgets that are available on the market by:

  •   High quality recording;
  •   Low power consumption;
  •   Built-in USB interface (exchange speed up to 0.7 Mb/sec);
  •   High sensitivity microphone;
  •   Wide frequency band;
  •   Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and a one control button, the recorder's LED indicates recorder's operating modes;
  •   Long recording duration (from 300 to 1,200 hours depending on memory capacity);
  •   Password protection (to secure the data, a password may be set in the DVR, which prevents another user from unauthorized access to the DVR content and settings);
  •   Voice Activation System (which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the se ttings made.);
  •   Timer to turn recording on;
  •   Digital signature of recordings.

";s:4:"TYPE";s:4:"html";}
Height 40 mm
Width 15 mm
Thickness 10 mm
Weight 8 g
Case Plastic
Record time
(memory capacity in hours)
300h, 1200h
Battery life in record mode alkaline battery - up to 10h, zinc-air battery - up to 60h
Power supply 13
Battery life in VAS mode
(acoustic signal below the threshold)
alkaline battery - up to 40h, zinc-air battery - up to 240h
Battery life in stand-by mode 2 months
Built-in flash memory 2 Gb, 8 Gb
Interface USB 1.1
Audio recording mode Mono
Frequency band 100 Hz to 10 kHz
Dynamic range -64
Sample rate 5.5, 8, 11, 16, 22
Voice Activating System YES
Timer recording YES
Current consumption from 7.3 mA up to 17.6 mA

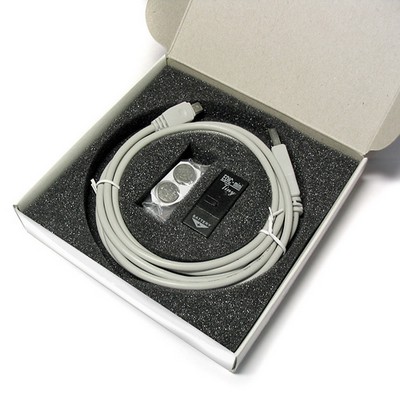

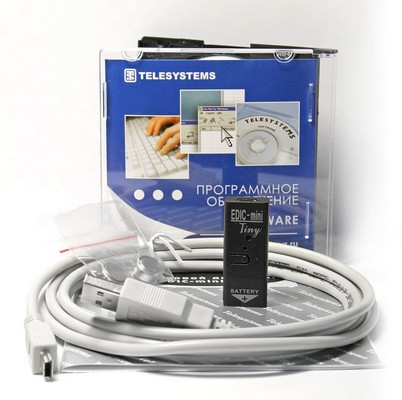

Delivery set:


Voice Recorder
Battery (AG13, d11.6x5.4mm of 1.5V) – 2 pieces
USB cable
Software CD
Instructions

Distance 1m:
B21 1m.wav

Distance 3m:
B21 3m.wav

Distance 5m:
B21 5m.wav
