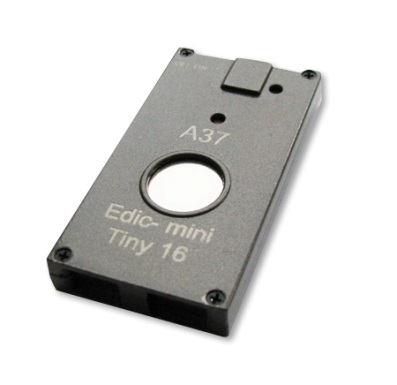

Series EDIC-mini Tiny 16
Tiny16 series is very popular among audio recording professionals because of its high technical characteristics: 16 bit audio codec, which provides high quality recording, build-in AGC system with the oportunity to adjust the record mode to the environmental conditions and highly sensitive microphone (10-12 m).
Tiny 16 recorders have a built-in clock, a calendar, password access protection, Voice Activation System (VAS), a timer to turn start recording at an assigned time, digital watermark, extremely low power consumption and wide frequency band 100-10,000 Hz.
Specifications:
• Dimensions: from 32x 12 mm, weight from 10g
• Recording time: up to 2400 hours.
• Built-in microphone sensitivity: 10-12 meters.
• Signal/noise ratio: - 80 dB.
• Frequency band: 100-10000 Hz.
• Sampling rate: from 5 to 20 KHz.
• 3 compressing modes: A-law (64 K bit/sec),
• ADPCM4, ADPCM2 (16 K bit/sec).
• Current consumption:
- In recording mode at 3 V voltage: 2 mA,
- In VAS mode: 200 microA,
- In stand-by mode: 50 microA.
• Supply voltage: 1-1.5 V or 2.7-3.3 V.
More Characteristics:
• Built-in AGC System
• Built-in USB interface with high exchange speed (up to 5.5 MB)
• High quality recording due to the 16 bit audio codec
• Simplified functionality (recording only, there is not possibility to listen to recordings using headphones; playing back is possible after the recordings have been uploaded onto a computer) and a one button control
• Extremely low power consumption
• Built-in clock
• Calendar
• Parole access protection
• Voice Activation System (VAS)
• Timer to start recording at an assigned time
• Digital watermark
-
Key Features:
Height: 78 mm; Diameter: 14 mm; Weight: 28 g; Case: Metal; Record time: 300h, 600h, 1200h; Battery life in record mode: 38h; Power supply: Rechargeable battery; Battery life in VAS mode: 480h; Battery life in stand-by mode: 6 months; Built-in flash memory: 2 Gb, 4 Gb, 8 Gb; Interface: USB 2.0; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: -72 dB; Sample rate: 5, 6.6, 8, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 51 mm; Width: 27 mm; Thickness: 7 mm; Weight: 10 g; Case: Metal; Record time: 300h, 600h, 1200h; Battery life in record mode: 60h; Power supply: Rechargeable battery; Battery life in VAS mode: 250h; Battery life in stand-by mode: 8 months; Built-in flash memory: 2 Gb, 4 Gb, 8 Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: -72 dB; Sample rate: 5, 6.6, 8, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Thickness: 12 mm; Diameter: 32 mm; Weight: 18 g; Case: Metal; Record time: 75h, 150h, 300h, 600h, 1200h; Battery life in record mode: 130h; Power supply: Battery; Battery life in VAS mode: 480h; Battery life in stand-by mode: 24 months; Built-in flash memory: 512 Mb, 1 Gb, 2 Gb, 4 Gb, 8 Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: -80 ; Sample rate: 5, 6.6, 8, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 75 mm; Diameter: 20 mm; Weight: 20 g; Case: Metal; Record time: 37h, 75h, 150h, 300h, 600h, 1200h, 2400h; Battery life in record mode: 360h; Power supply: Battery; Battery life in VAS mode: 1440h; Battery life in stand-by mode: 60 months; Built-in flash memory: 256 Mb, 512 Mb, 1 Gb, 2 Gb, 4 Gb, 8 Gb, 16Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: - 80 dB ; Sample rate: 5, 6.6, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 62 mm; Width: 20 mm; Thickness: 11 m; Weight: 11 g; Case: Wooden; Record time: 300h, 600h, 1200h; Battery life in record mode: 70 h ; Power supply: Rechargeable battery; Battery life in VAS mode: 480 h; Battery life in stand-by mode: 24 months; Built-in flash memory: 2 Gb, 4 Gb, 8 Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: -72 dB; Sample rate: 5, 6.6, 8, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 68 mm; Width: 36 mm; Thickness: 19 mm; Weight: 26 g; Case: Wooden; Record time: 150h, 300h, 600h, 1200h; Battery life in record mode: 150h; Power supply: Rechargeable battery; Battery life in VAS mode: 432h; Battery life in stand-by mode: 6 months; Built-in flash memory: 1 Gb, 2 Gb, 4 Gb, 8 Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: -72 dB; Sample rate: 5, 6.6, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 58 mm; Width: 38 mm; Thickness: 17 mm; Weight: 37 g; Case: Wooden; Record time: 150h, 300h, 600h, 1200h, 2400h; Battery life in record mode: 300h; Power supply: Rechargeable battery; Battery life in VAS mode: 720h; Battery life in stand-by mode: 12 months ; Built-in flash memory: 1 Gb, 2 Gb, 4 Gb, 8 Gb, 16Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: -72 dB; Sample rate: 5, 6.6, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 52 mm; Width: 45 mm; Thickness: 7 mm; Weight: 33 g; Case: Metal; Record time: 150h, 300h, 600h, 1200h; Battery life in record mode: 130h; Power supply: Rechargeable battery; Battery life in VAS mode: 480h; Battery life in stand-by mode: 24 months; Built-in flash memory: 1 Gb, 2 Gb, 4 Gb, 8 Gb; Interface: USB 1.1; Frequency band: 100 Hz to 10 kHz; Dynamic range: -72 Db; Sample rate: 5, 6.6, 8, 10, 13.3, 22; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 46 mm; Width: 30 mm; Thickness: 7 mm; Weight: 14 g; Case: Metal; Record time: 300h, 600h, 1200h; Battery life in record mode: 40h; Power supply: Rechargeable battery; Battery life in VAS mode: 150h; Battery life in stand-by mode: 4 months; Built-in flash memory: 2 Gb, 4 Gb, 8 Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz - 10 kHz; Dynamic range: - 80 Db; Sample rate: 5, 6.6, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 85 mm; Width: 13 mm; Thickness: 13 mm; Weight: 14 g; Case: Metal; Record time: 300h, 600h, 1200h; Battery life in record mode: 80h; Power supply: Battery; Battery life in VAS mode: 264h; Battery life in stand-by mode: 9 months; Built-in flash memory: 2 Gb, 4 Gb, 8 Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: -80 dB; Sample rate: 5, 6.6, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 75 mm; Width: 12 mm; Thickness: 5 mm; Weight: 10 g; Case: Metal; Record time: 300h, 600h, 1200h; Battery life in record mode: 28h; Power supply: Rechargeable battery; Battery life in VAS mode: 96h; Battery life in stand-by mode: 2 months; Built-in flash memory: 2 Gb, 4 Gb, 8 Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: -80 dB; Sample rate: 5, 6.6, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES; -
Key Features:
Height: 65mm; Width: 54mm; Thickness: 19 mm; Weight: 23 g; Case: Plastic; Record time: 300h, 600h, 1200h, 2400h; Battery life in record mode: 400h; Power supply: Rechargeable battery or battery; Battery life in VAS mode: 2 months; Battery life in stand-by mode: 12 months ; Built-in flash memory: 2 Gb, 4 Gb, 8 Gb, 16Gb; Interface: USB 1.1; Audio recording format : Mono; Frequency band: 100 Hz to 10 kHz; Dynamic range: -80 Db; Sample rate: 5, 6.6, 8, 10, 13.3, 20; Voice Activating System: YES; Timer recording: YES;
